RDM-W5C9-4515-RP1M-GE-001

Antennas RF Overview

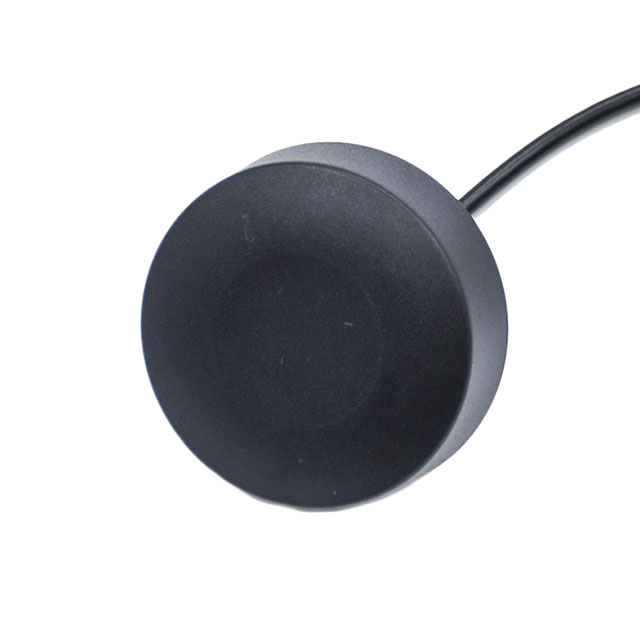

The RDM-W5C9-4515-RP1M-GE-001 is a wideband RF antenna manufactured by Raltron Electronics, designed for dual-band operation. It supports frequencies in the 2.4GHz to 2.5GHz range and the 5.15GHz to 5.85GHz range, covering standards such as 802.15.4, Bluetooth, and Wi-Fi. The component features an RP-SMA male connector with a puck form factor. Key electrical parameters include a maximum height of 15.20mm (0.598 inches) and gain specifications ranging from 4.5dBi to 5dBi across its operational bands.

Antennas RF Feature Summary

• Dual-band capability supporting both 2.4GHz and 5GHz wireless protocols
• Wideband frequency coverage for versatile connectivity applications
• Integrated RP-SMA male connector for direct interface compatibility

Antennas RF Applications

• Wi-Fi network infrastructure devices
• Bluetooth-enabled IoT sensors and modules
• IEEE 802.15.4 compliant low-power wireless systems

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical drawings provided by Raltron Electronics to ensure physical dimensions match your enclosure constraints. Confirm that the RP-SMA male connector type aligns with your PCB or cable assembly requirements. Cross-reference the gain specifications against your link budget calculations to ensure adequate signal performance for your intended deployment environment.

Antennas RF Selection Notes

Select this component when a compact puck-style antenna is required for simultaneous 2.4GHz and 5GHz operations. Ensure the application does not require external amplification beyond the stated 5dBi gain. Verify that the mounting method accommodates the 15.20mm height profile without obstructing other components or housing structures.

Antennas RF Part Context

This model belongs to Raltron's RF antenna portfolio, specifically engineered for wireless communication modules. It addresses the need for reliable connectivity in space-constrained designs where multiple wireless standards must be supported simultaneously. The puck design offers stability compared to flexible alternatives while maintaining a low profile suitable for embedded systems.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Raltron Electronics directly for equivalent models with compatible mechanical and electrical specifications.
