Product Detailed Parameters
- Description：BUZZER MAGN 3V 4X4MM W SMD
- Series：RDTE
- Mfr：Raltron Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Driver Circuitry：Transducer, Externally Driven
- Input Type：DC
- Frequency：4kHz
- Technology：Magnetic
- Operating Mode：-
- Duration：-
- Sound Pressure Level (SPL)：70dB @ 3V, 10cm
- Current - Supply：90mA
- Port Location：Side
- Operating Temperature：-20°C ~ 70°C
- Approval Agency：-
- Ratings：-
- Ingress Protection：-
- Mounting Type：Surface Mount
- Termination：Solder Pads
- Height - Seated (Max)：0.091" (2.30mm)
- Voltage - Rated：3 V
- Voltage Range：2 ~ 4V
- Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
Download product information
Overview

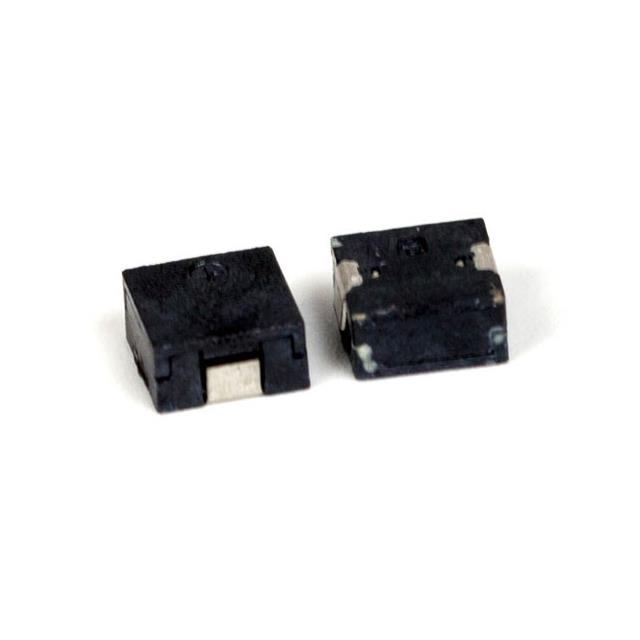

The RDTE-4.000-4040-NS2 is a surface-mount magnetic buzzer manufactured by Raltron Electronics. It operates at a nominal frequency of 4 kHz with a drive voltage of 3 VDC. The device draws 90 mA during operation and produces a sound pressure level of 70 dB when measured at a distance of 10 cm. Its physical dimensions are 4.00 mm x 4.00 mm, utilizing solder pads for termination. The component functions as an externally driven transducer suitable for compact electronic assemblies.
Feature Summary
- Externally driven magnetic transducer design
- Surface mount solder pad termination
- Compact 4.00 mm square form factor
Applications
- Electronic alarm systems
- Audible notification devices
- Consumer electronics indicators
Procurement Notes
Verify the specific suffix (NS2) against official Raltron documentation to confirm exact acoustic and electrical tolerances. Ensure the ordering information matches the required package style and compliance certifications. Cross-reference the datasheet for precise mechanical drawing details before finalizing procurement specifications.
Selection Notes
Select this component for applications requiring a low-profile audible indicator in space-constrained designs. The 3 VDC operating voltage aligns with standard logic levels, while the 70 dB output ensures audibility in moderate noise environments. Confirm that the external driver circuit can supply the required 90 mA current peak.
Part Context
This part belongs to the RDTE series of magnetic buzzers from Raltron Electronics. The series offers various sizes and frequencies, with the NS2 suffix indicating specific packaging or compliance attributes. These components are designed for integration into portable and stationary electronic devices requiring reliable audio signaling.
Replacement Considerations
Direct substitutes include other 4 kHz, 3 VDC surface-mount magnetic buzzers with similar dimensions. Verify pinout compatibility and acoustic output levels. Check for equivalent current requirements and mounting hole patterns if mechanical constraints are strict.
