RE09P-NM

Antennas RF Overview

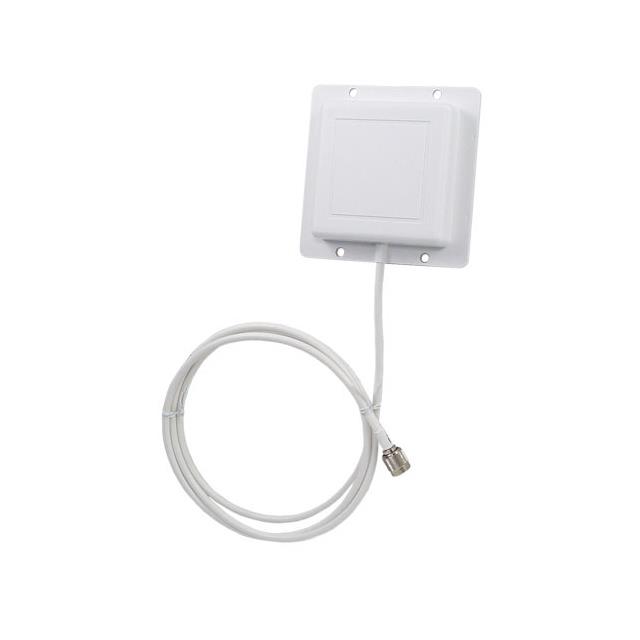

The RE09P-NM is a passive RF antenna manufactured by L-com, designed for wireless communication applications. It supports the 802.11b/g/n Wi-Fi standards, Bluetooth, and ISM bands. The device features an N-type connector interface for secure attachment to compatible systems. As a flat patch antenna, it provides directional signal transmission and reception capabilities suitable for various networking environments.

Antennas RF Feature Summary

• Supports multiple wireless protocols including 802.11b/g/n, Bluetooth, and ISM frequencies
• Utilizes an N-type connector for robust system integration
• Constructed as a flat patch antenna for specific radiation patterns

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• Bluetooth device connectivity solutions
• ISM band industrial or commercial communications

Antennas RF Procurement Notes

Verify that the required connector type matches the N-type specification provided in the documentation. Confirm compatibility with the intended wireless standards, specifically 802.11b/g/n and Bluetooth, before finalizing the order. Ensure the installation environment accommodates the physical form factor of a flat patch antenna.

Antennas RF Selection Notes

Select this model when an N-type interface is required for 802.11b/g/n or Bluetooth applications. Consider the flat patch design for directional coverage needs. Evaluate whether the passive nature of the antenna meets the gain requirements of the specific link budget compared to active alternatives.

Antennas RF Part Context

This component belongs to L-com's range of passive RF antennas. It is categorized under wireless connectivity hardware supporting standard IEEE 802.11 protocols. The product line includes variants with different connectors and frequency support, such as SMA models, but this specific part uses an N-type interface.
