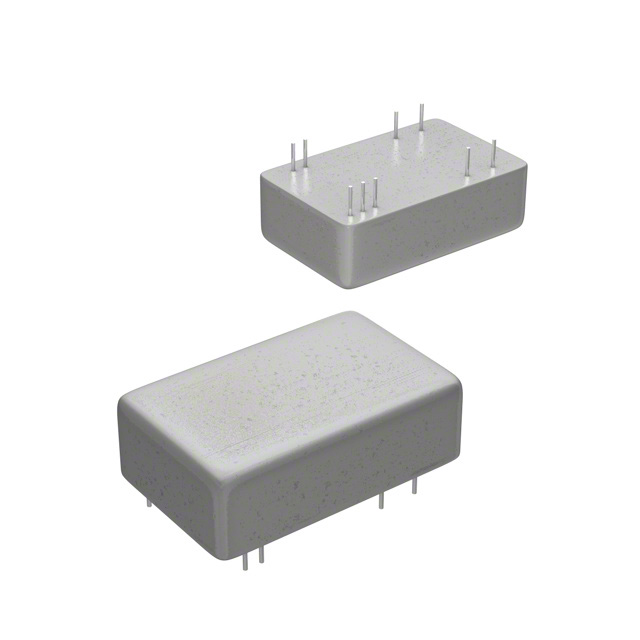

REC10-2415SRW/H2/A/M/X2

REC10-2415SRW/H2/A/M/X2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 15V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC10-2415SRW/H2/A/M/X2

• Description：DC DC CONVERTER 15V 10W
• Series：ECONOLINE REC10 (10W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：667mA
• Power (Watts)：10 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off, OCP, SCP
• Operating Temperature：-40°C ~ 75°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 9 Leads
• Size / Dimension：1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High

DC DC Converters datasheet and documents for REC10-2415SRW/H2/A/M/X2
