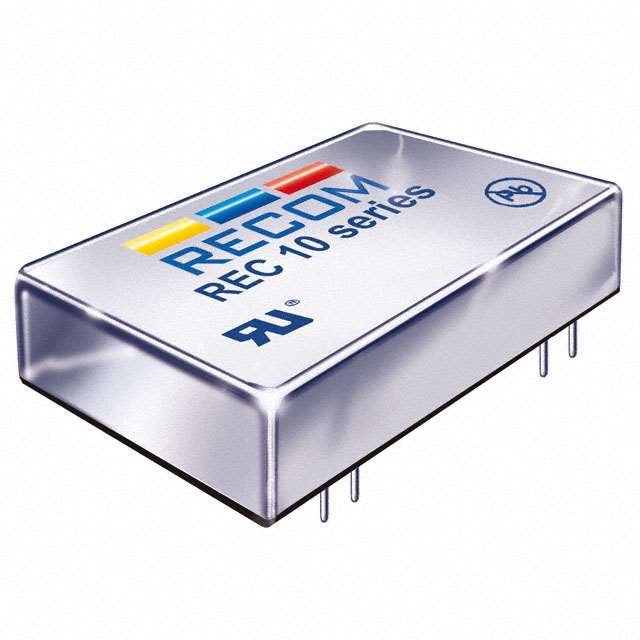

REC10-4812D/H2/M

REC10-4812D/H2/M is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-12V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC10-4812D/H2/M

• Description：DC DC CONVERTER +/-12V 10W
• Series：ECONOLINE REC10/M (10W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：416mA, 416mA
• Power (Watts)：10 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP, UVLO
• Operating Temperature：-40°C ~ 81°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module
• Size / Dimension：1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High

DC DC Converters datasheet and documents for REC10-4812D/H2/M
