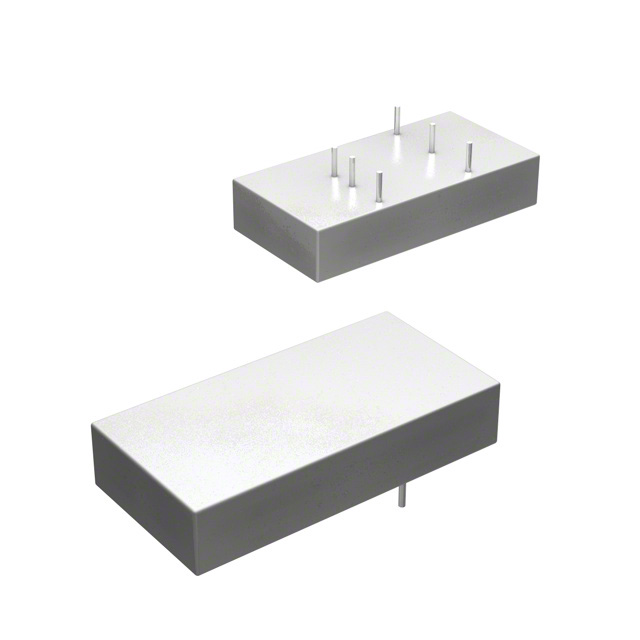

REC15-4815D/H2

REC15-4815D/H2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-15V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC15-4815D/H2

• Description：DC DC CONVERTER +/-15V 15W
• Series：ECONOLINE REC15 (15W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 500mA
• Power (Watts)：15 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP
• Operating Temperature：-40°C ~ 71°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for REC15-4815D/H2
