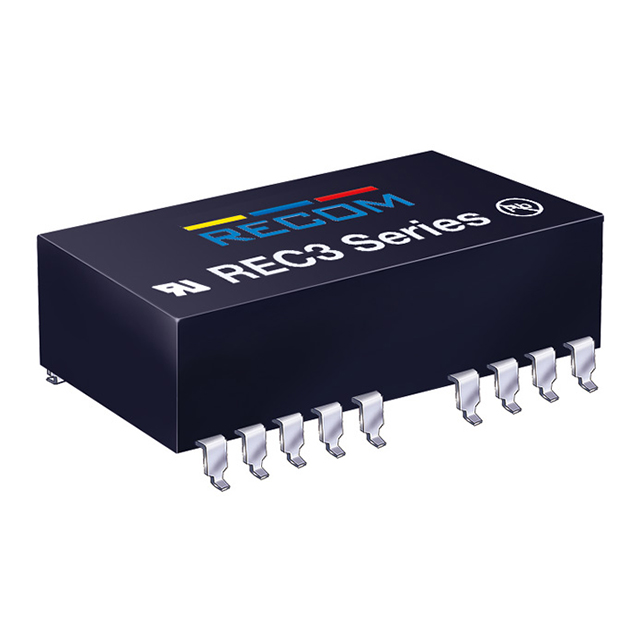

REC3-1205DRW/H6/A/SMD/CTRL

REC3-1205DRW/H6/A/SMD/CTRL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-5V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC3-1205DRW/H6/A/SMD/CTRL

• Description：DC DC CONVERTER +/-5V 3W
• Series：ECONOLINE REC3-DRW (3W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Current - Output (Max)：300mA, 300mA
• Power (Watts)：3 W
• Voltage - Isolation：6 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 18 Leads
• Size / Dimension：1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm)
• Control Features：Enable, Active Low
