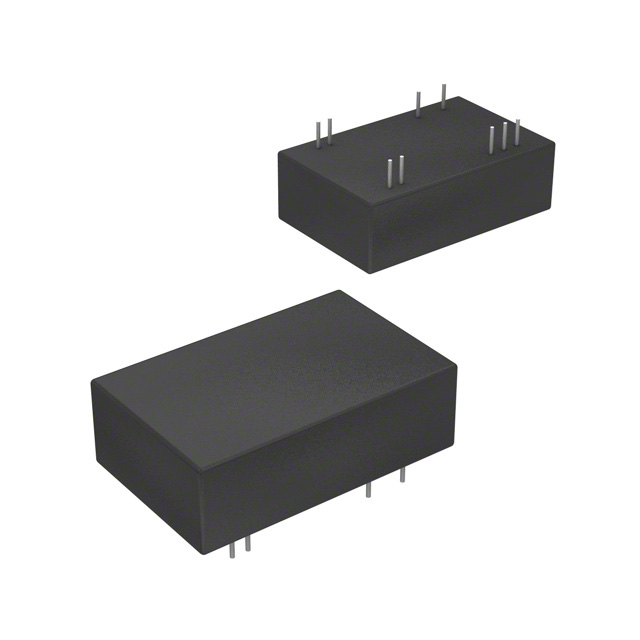

REC3-1209DRW/H6/C/M

REC3-1209DRW/H6/C/M is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-9V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC3-1209DRW/H6/C/M

• Description：DC DC CONVERTER +/-9V 3W
• Series：ECONOLINE REC3-DRW (3W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Current - Output (Max)：165mA, 165mA
• Power (Watts)：3 W
• Voltage - Isolation：6 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 9 Leads
• Size / Dimension：1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Control Features：-

DC DC Converters datasheet and documents for REC3-1209DRW/H6/C/M
