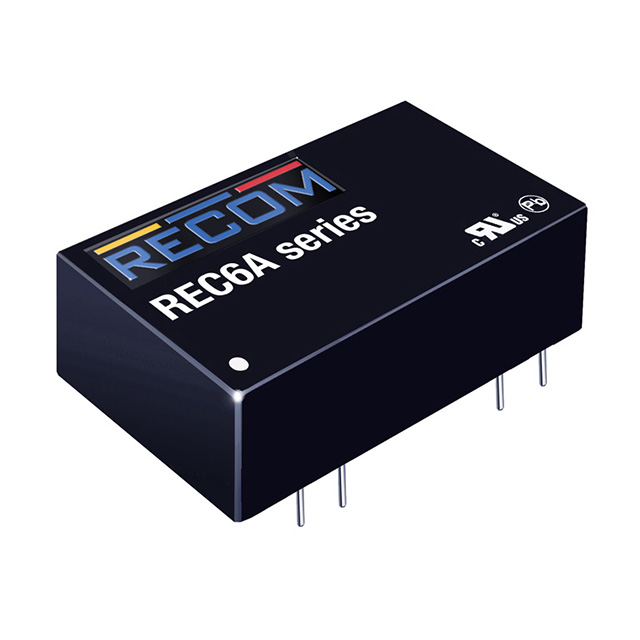

REC6A-0505SW/H2/X1

REC6A-0505SW/H2/X1 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REC6A-0505SW/H2/X1

• Description：DC DC CONVERTER 5V 6W
• Series：REC6A (6W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：6 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：SCP, UVLO
• Operating Temperature：-40°C ~ 65°C
• Efficiency：73%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 8 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for REC6A-0505SW/H2/X1
