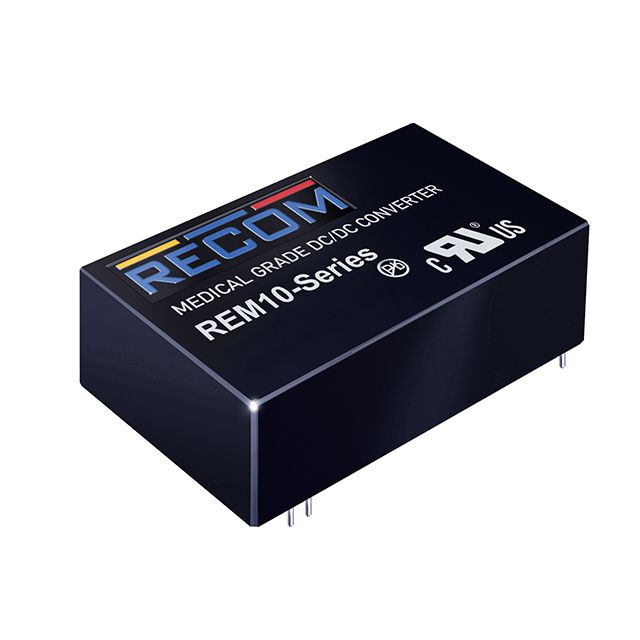

REM10-4815SW/A/CTRL

REM10-4815SW/A/CTRL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 15V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REM10-4815SW/A/CTRL

• Description：DC DC CONVERTER 15V 10W
• Series：MEDLINE REM10 (10W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：670mA
• Power (Watts)：10 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 105°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 6 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-

DC DC Converters datasheet and documents for REM10-4815SW/A/CTRL
