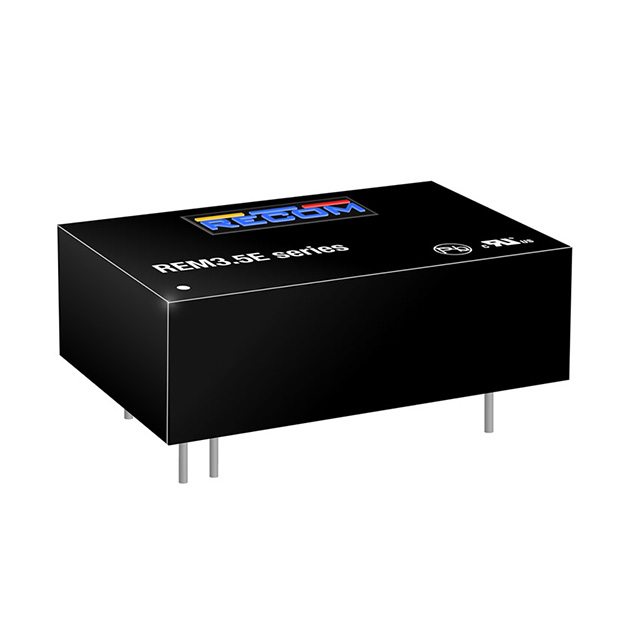

REM3.5E-0512S/R10/A/CTRL

REM3.5E-0512S/R10/A/CTRL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 3.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REM3.5E-0512S/R10/A/CTRL

• Description：DC DC CONVERTER 12V 3.5W
• Series：MEDLINE REM3.5E (3.5W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：290mA
• Power (Watts)：3.5 W
• Voltage - Isolation：10 kV
• Applications：Medical
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 7 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus

DC DC Converters datasheet and documents for REM3.5E-0512S/R10/A/CTRL
