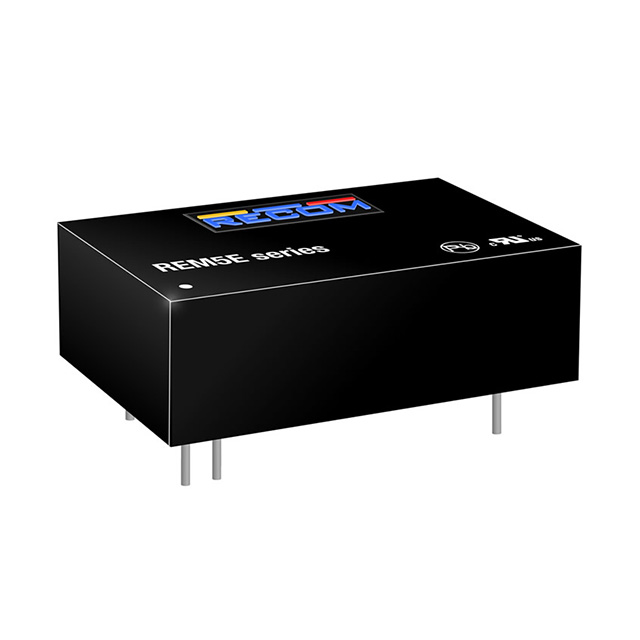

REM5E-4812S/R8/A

REM5E-4812S/R8/A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REM5E-4812S/R8/A

• Description：DC DC CONVERTER 12V 5W
• Series：MEDLINE REM5E (5W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：417mA
• Power (Watts)：5 W
• Voltage - Isolation：8 kV
• Applications：Medical
• Features：OCP, OVP, SCP
• Operating Temperature：-40°C ~ 80°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 7 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
