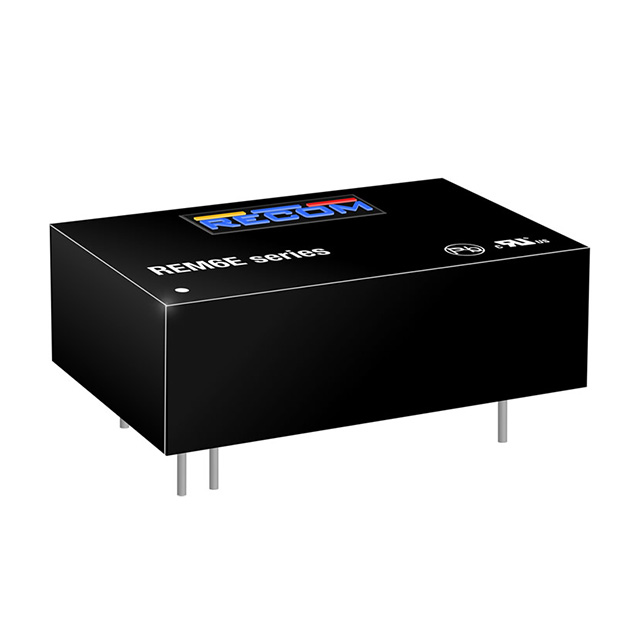

REM6E-2409D/R10/A/CTRL/X1

REM6E-2409D/R10/A/CTRL/X1 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-9V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for REM6E-2409D/R10/A/CTRL/X1

• Description：DC DC CONVERTER +/-9V 6W
• Series：MEDLINE REM6E (6W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：335mA, 335mA
• Power (Watts)：6 W
• Voltage - Isolation：10 kV
• Applications：Medical
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 75°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 7 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：-
