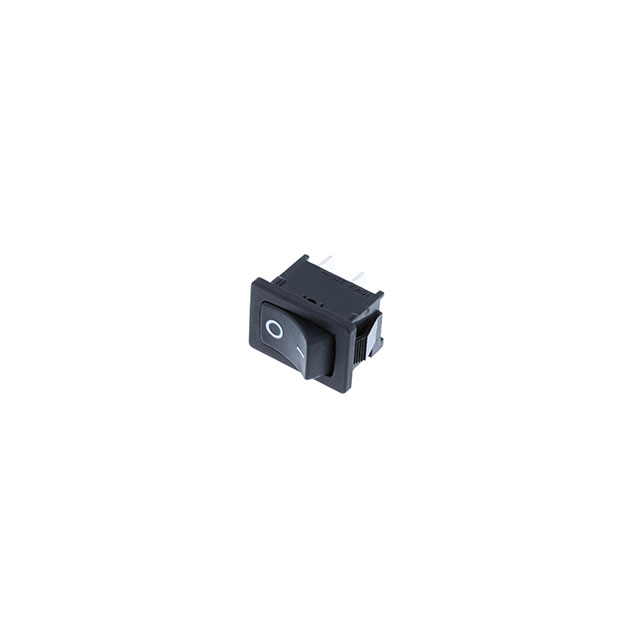

RF1-1B-DC-2-B-1

RF1-1B-DC-2-B-1 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH ROCKER SPST-NO 10A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for RF1-1B-DC-2-B-1

• Description：SWITCH ROCKER SPST-NO 10A 125V
• Series：RF1
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：16 (AC), 16 (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：12 V
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Black
• Actuator Marking：O -
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Rectangular - 19.20mm x 13.00mm
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：CSA, cURus, ENEC

Rocker Switches datasheet and documents for RF1-1B-DC-2-B-1
