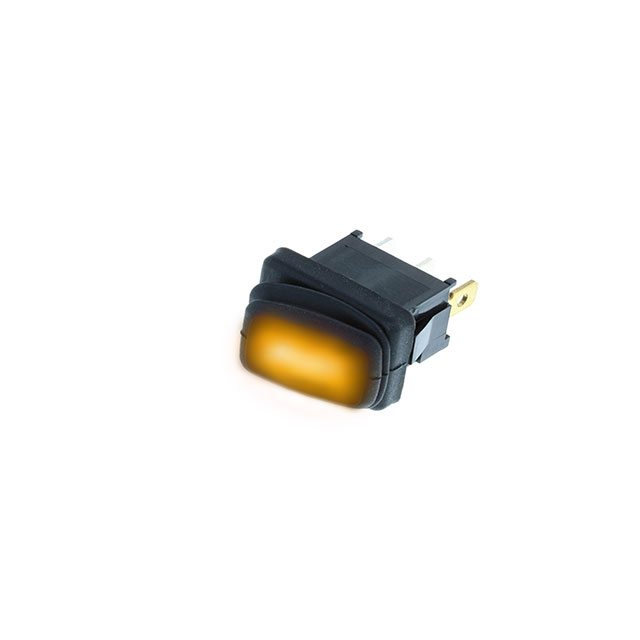

RF3-1A-DC-2-AL

RF3-1A-DC-2-AL is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is MINI SPST OFF-ON LED- IP65 DC. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for RF3-1A-DC-2-AL

• Description：MINI SPST OFF-ON LED- IP65 DC
• Series：RF3
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：16A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：12 V
• Actuator Type：Flat - Illuminated
• Color - Actuator/Cap：Amber
• Actuator Marking：No Marking
• Illumination Type, Color：LED, Amber
• Illumination Voltage (Nominal)：12 VDC
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：-
• Panel Cutout Dimensions：Rectangular - 19.20mm x 13.00mm
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：CSA, cURus, ENEC
