RFBPF3225180C07B1U

Overview

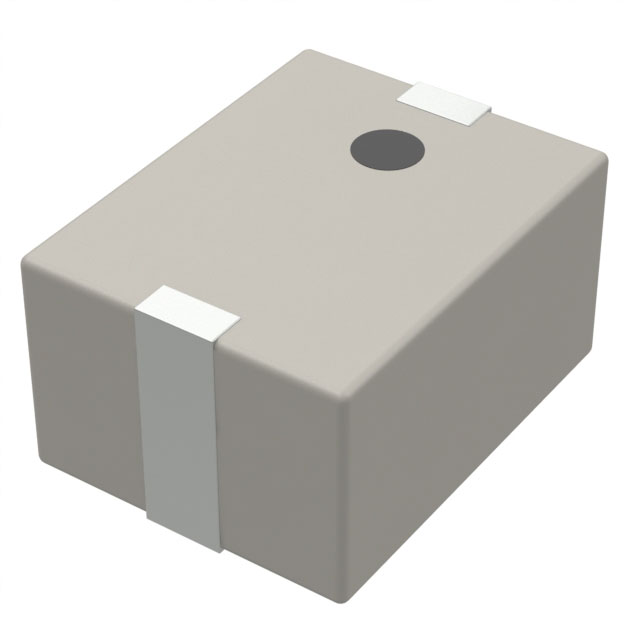

The RFBPF3225180C07B1U is a multilayer ceramic bandpass filter manufactured by Walsin Technology Corporation. It utilizes Low-Temperature Co-fired Ceramics (LTCC) technology and features a miniature 1210 (3225 metric) surface-mount package with a 3-pad configuration. The component operates within the 1125 MHz to 1675 MHz frequency range, centered at 1.4 GHz, with a bandwidth of 550 MHz. It exhibits an insertion loss of 1.8 dB and supports standard 50Ω or 75Ω impedance configurations for RF signal conditioning.

Feature Summary

• Multilayer ceramic construction using LTCC technology for compact form factor
• Designed for EMI/RFI suppression and power line filtering applications
• Surface-mount termination compatible with automated board assembly

Applications

• EMI/RFI suppression in electronic circuits
• Power line filtering
• RF signal conditioning in mobile communications

Procurement Notes

Verify the specific impedance requirement (50Ω or 75Ω) against the target circuit design before procurement, as datasheet specifications may vary by suffix. Confirm that the 1210 footprint aligns with the PCB layout constraints. Ensure the operating temperature range meets the environmental conditions of the final application. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity and traceability.

Selection Notes

Select this component when a low-profile bandpass filter is required for frequencies between 1125 MHz and 1675 MHz. The LTCC construction offers stability suitable for high-frequency applications. Consider the 1.8 dB insertion loss impact on system gain. The 1210 package size balances performance with space efficiency for dense PCB layouts.

Part Context

This component belongs to Walsin's RF filter portfolio, specifically designed for radio frequency applications. It complements their broader range of passive components including MLCCs and inductors. The product is intended for use in networking and mobile communication devices where size and signal integrity are critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if considering alternative manufacturers.
