RFDPA131000SBUB801

Antennas RF Overview

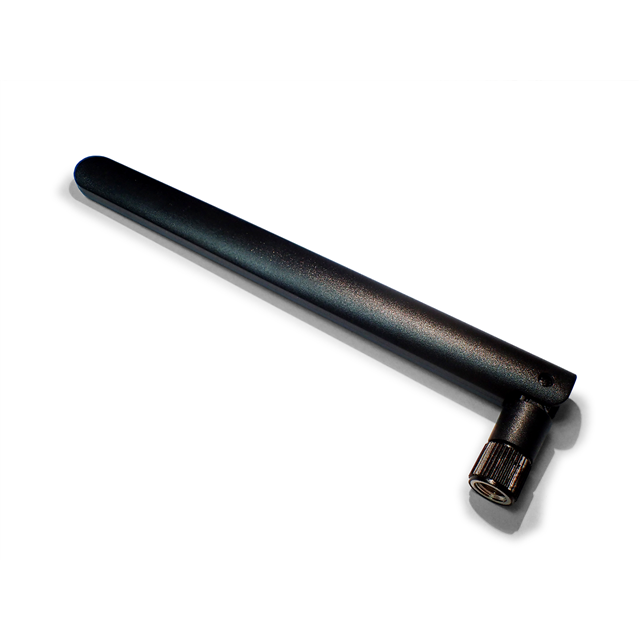

The RFDPA131000SBUB801 is a 315 MHz RF antenna manufactured by Walsin Technology Corporation. It features a reverse SMA plug connector and utilizes a rubber ducky dipole design. The component operates within the ISM band, providing reliable signal transmission for wireless communication applications requiring compact form factors.

Antennas RF Feature Summary

• Utilizes a rubber ducky dipole structure for omnidirectional radiation patterns
• Equipped with a reverse SMA plug interface for secure cable attachment
• Optimized for operation at 315 MHz frequency bands

Antennas RF Applications

• Wireless remote control systems
• Industrial telemetry equipment
• Security alarm transmitters

Antennas RF Procurement Notes

Verify the specific connector orientation and mechanical dimensions against the target device enclosure before ordering. Confirm that the reverse SMA plug configuration matches the mating port requirements of the host system to ensure proper physical integration and signal integrity.

Antennas RF Selection Notes

Select this model when a low-profile, durable antenna solution is required for 315 MHz applications. The rubber ducky construction offers flexibility and resistance to environmental stress compared to rigid alternatives, making it suitable for portable or mobile devices.

Antennas RF Part Context

This component belongs to Walsin's RF antenna portfolio, which includes various dipole, patch, and whip designs. The product line supports global connectivity standards across consumer electronics, industrial automation, and IoT sectors, emphasizing passive component reliability.

Antennas RF Replacement Considerations

No public substitute part numbers are documented for this specific model. Ensure exact compatibility with the reverse SMA interface and 315 MHz tuning if sourcing alternatives from other manufacturers.
