RFDPA391300SBAB8G1

$25.22

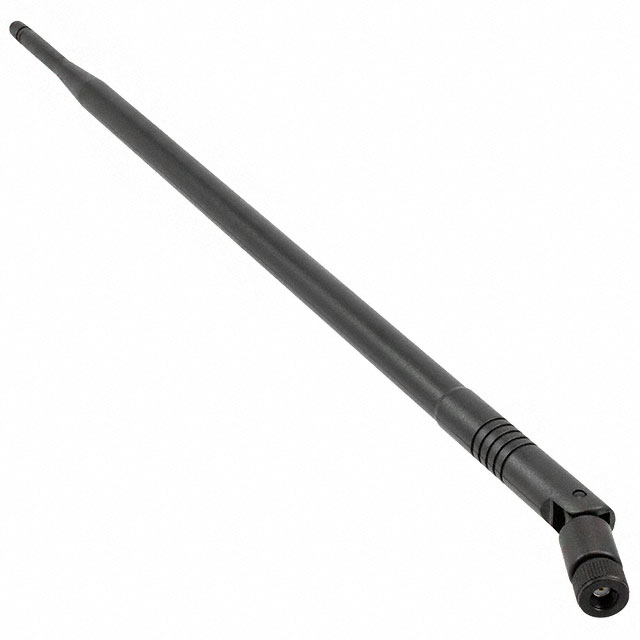

Description：RF ANT 2.4GHZ WHIP TILT RP-SMA
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk

SKU:5f332249671b Category: RF Antennas Brand: Walsin Technology Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RFDPA391300SBAB8G1 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Walsin Technology Corporation. Its product description is RF ANT 2.4GHZ WHIP TILT RP-SMA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RFDPA391300SBAB8G1

Description：RF ANT 2.4GHZ WHIP TILT RP-SMA
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Tilt
Number of Bands：1
VSWR：2
Return Loss：-10dB
Gain：9dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：15.433" (392.00mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for RFDPA391300SBAB8G1

RFDPA391300SBAB8G1

Antennas RF Overview

The RFDPA391300SBAB8G1 is a whip-style RF antenna manufactured by Walsin Technology Corporation. It operates within the 2.4GHz to 2.5GHz frequency band, centered at 2.4GHz. The component provides a gain of 9dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 2. It features an RP-SMA male connector for mounting. The physical height of the antenna is specified as 15.433 inches (392.00mm).

Antennas RF Feature Summary

Whip design with tilt capability for directional adjustment.
RP-SMA male connector mount interface.
Optimized for 2.4GHz ISM band operations.

Antennas RF Applications

Wireless local area network (WLAN) systems.
Bluetooth device connectivity modules.
Industrial wireless sensor networks.

Antennas RF Procurement Notes

Verify current availability status through authorized distributors, as supply chain conditions may vary. Confirm that the RP-SMA male connector specification matches the host equipment interface requirements. Ensure the 15.433-inch height dimension fits within the designated enclosure or mounting space constraints without interference.

Antennas RF Selection Notes

Select this component when a high-gain whip antenna is required for 2.4GHz applications. The tilt feature allows for polarization adjustment to optimize signal reception in specific environments. Verify compatibility with RP-SMA female ports on the target circuit board or cable assembly before integration.

Antennas RF Part Context

This part belongs to the RFDPA series of RF antennas from Walsin Technology Corporation. The series includes various dipole and whip configurations designed for different frequency bands and mounting styles. Walsin specializes in passive components, including MLCCs, resistors, and RF filters, providing integrated solutions for electronic devices.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 2.4GHz frequency range, 9dBi gain, VSWR of 2, and RP-SMA male connector interface specifications.
