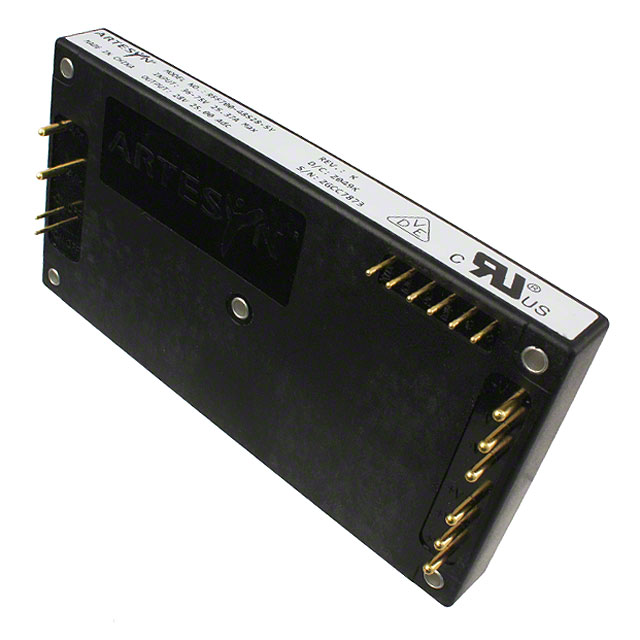

RFF700-48S28-5Y

RFF700-48S28-5Y is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 16.8-29.4V 700W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RFF700-48S28-5Y

• Description：DC DC CONVERTER 16.8-29.4V 700W
• Series：RFF700 (700W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：16.8 ~ 29.4V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：25A
• Power (Watts)：700 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：Full Brick
• Size / Dimension：4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RFF700-48S28-5Y
