RFLW3N1100BMNWS

Fixed Inductors Overview

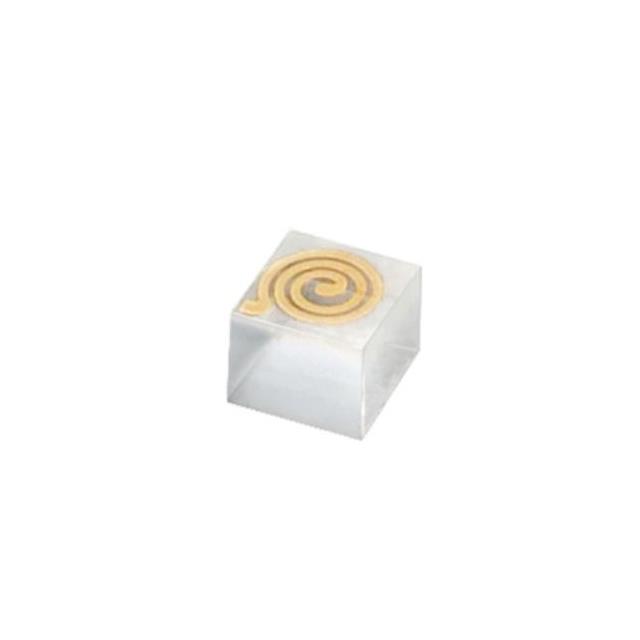

The RFLW3N1100BMNWS is a high-frequency wire bondable RF spiral inductor manufactured by Vishay Electro-Films. It features a surface mount design with an unshielded thin film construction. The component operates within a temperature range of -55°C to 125°C and exhibits a DC resistance of 1.6 Ohms. This inductor is part of the RFLW series, designed for specialized RF applications requiring precise inductance values and reliable performance in demanding electronic environments.

Fixed Inductors Feature Summary

• Wire bondable construction for flexible interconnection
• Thin film technology for stable high-frequency performance
• Unshielded design suitable for specific RF circuit layouts

Fixed Inductors Applications

• RF circuit design
• High-frequency signal processing
• Wire bondable module integration

Fixed Inductors Procurement Notes

Verify the exact inductance value and tolerance specifications against the official Vishay datasheet before procurement. Confirm that the 1.6 Ohm DC resistance aligns with your circuit requirements. Ensure compatibility with your PCB layout and wire bonding processes. Check for any specific handling or storage instructions provided in the manufacturer's documentation to maintain component integrity during assembly.

Fixed Inductors Selection Notes

Select this component when a wire bondable RF inductor with thin film stability is required. Consider the -55°C to 125°C operating temperature range for environmental suitability. Evaluate the 1.6 Ohm DC resistance impact on your circuit's efficiency. Compare with other RFLW series variants if different inductance values are needed. Ensure the unshielded nature fits your electromagnetic interference constraints.

Fixed Inductors Part Context

This inductor belongs to Vishay Electro-Films' RFLW series, which specializes in high-frequency wire bondable components. The series utilizes thin film technology on ceramic substrates to provide reliable performance in RF applications. These components are designed for use in modules where wire bonding is preferred over traditional soldering for interconnections.

Fixed Inductors Replacement Considerations

Consult the official Vishay documentation for direct substitutes within the RFLW series. Verify equivalent inductance, DC resistance, and package dimensions. Cross-reference with other Vishay RF inductor lines if form factor changes are acceptable.
