RFMTA340745IMAB701

$3.46

Description：RF ANT 2.4GHZ STAMPED MET IPEX
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk

SKU:7aeb12993745 Category: RF Antennas Brand: Walsin Technology Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RFMTA340745IMAB701 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Walsin Technology Corporation. Its product description is RF ANT 2.4GHZ STAMPED MET IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RFMTA340745IMAB701

Description：RF ANT 2.4GHZ STAMPED MET IPEX
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Stamped Metal
Number of Bands：1
VSWR：2
Return Loss：-10dB
Gain：3.4dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.236" (6.00mm)
Applications：ISM
Power - Max：1 W

Antennas RF datasheet and documents for RFMTA340745IMAB701

RFMTA340745IMAB701

Antennas RF Overview

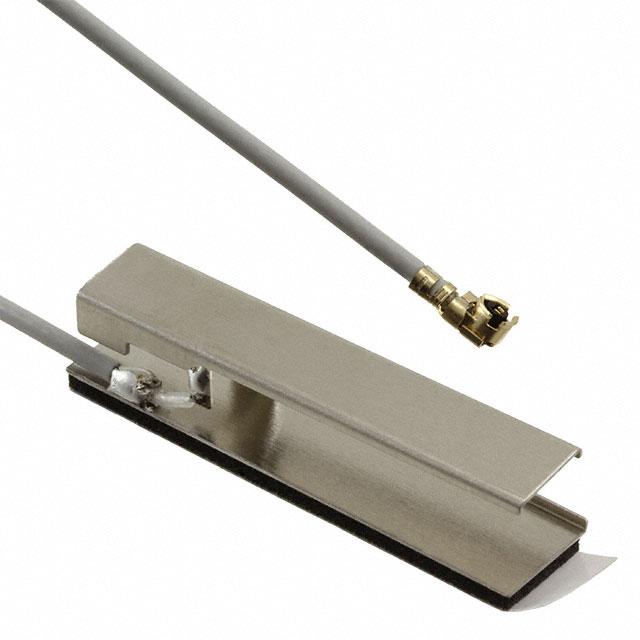

The RFMTA340745IMAB701 is a stamped metal PCB antenna designed for ISM band applications at 2.4 GHz to 2.5 GHz. It features an IPEX MHF1 connector and adhesive mounting. The unit measures 34 mm in length, 7.4 mm in width, and 4.5 mm in height. It includes a 190 mm RF coax cable. The antenna operates with linear polarization and maintains a 50 Ohm impedance.

Antennas RF Feature Summary

Stamped metal construction for durability
Integrated adhesive for secure PCB attachment
Pre-terminated with RF coax cable

Antennas RF Applications

Wi-Fi devices operating at 2.4 GHz
Bluetooth modules
WLAN equipment
Zigbee networks

Antennas RF Procurement Notes

Verify the specific datasheet version for the RFMTA340745IMAB701 to confirm mechanical tolerances and electrical performance curves. Ensure the IPEX connector type matches the system design requirements. Confirm adhesive compatibility with the target PCB material before finalizing procurement specifications.

Antennas RF Selection Notes

Select this component when a low-profile, pre-cabled metal antenna is required for 2.4 GHz ISM bands. The integrated adhesive simplifies assembly compared to screw-mount alternatives. Verify that the 190 mm cable length fits within the device enclosure constraints.

Antennas RF Part Context

This model belongs to the Walsin RFMTA series of stamped metal antennas. These components are engineered for compact wireless communication devices requiring reliable signal transmission in the 2.4 GHz range. The series supports various industrial and consumer electronics applications.
