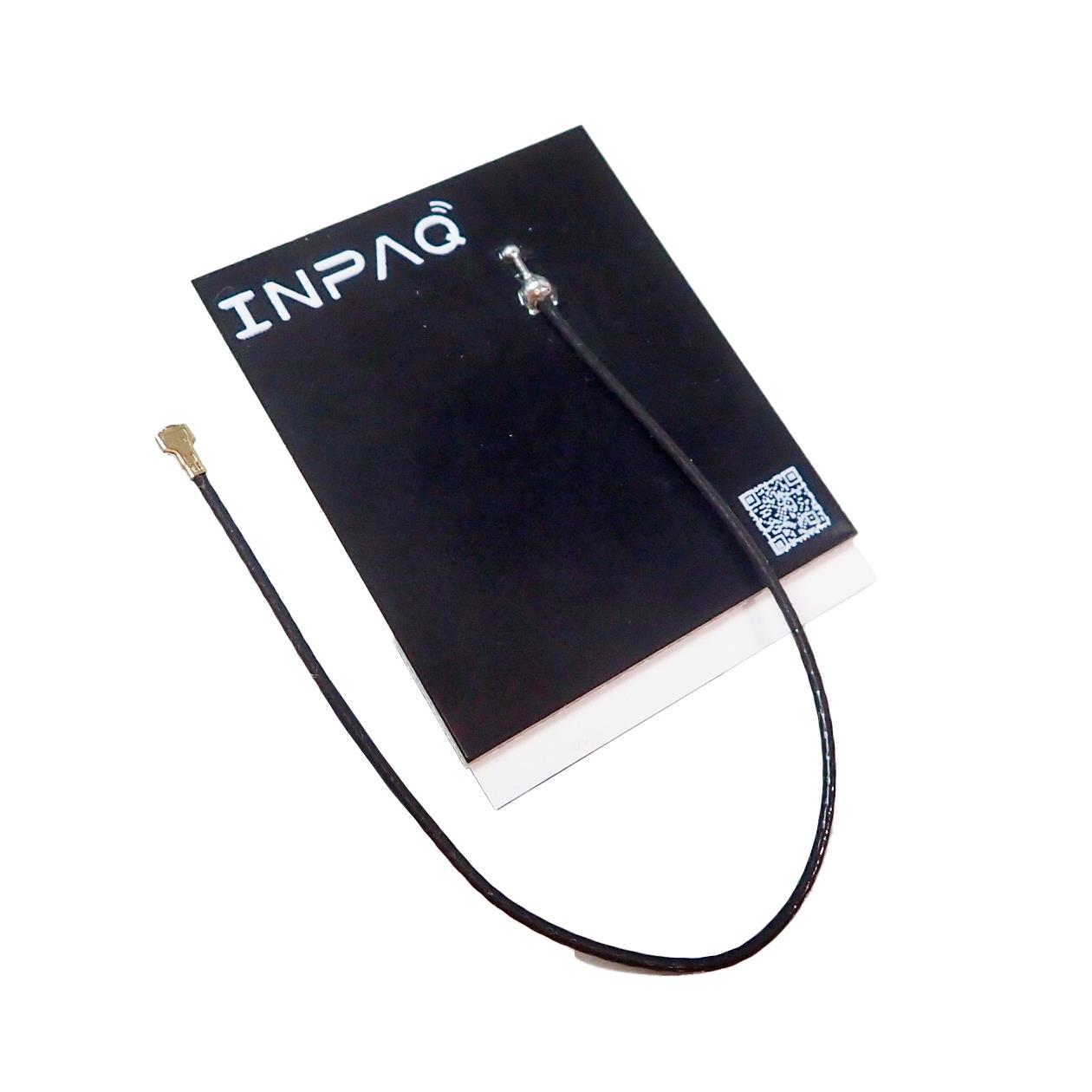

RFPCA303510EMMB101 is listed in the Antennas RF range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is PCB ANTENNA2.4 ~ 2.5/5.15 ~ 6.5. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for RFPCA303510EMMB101
- Description：PCB ANTENNA2.4 ~ 2.5/5.15 ~ 6.5
- Series：-
- Mfr：INPAQ Technology Co., Ltd
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.45GHz, 5.825GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 6.5GHz
- Antenna Type：Flat Patch
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：3.32dBi, 3.43dBi
- Features：Cable - 100mm
- Termination：I-PEX
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：0.028" (0.70mm)
- Applications：5G, LTE
- Power - Max：1 W
Antennas RF datasheet and documents for RFPCA303510EMMB101
Antennas RF Overview
The RFPCA303510EMMB101 is a flat patch antenna designed for 5G and LTE wireless communication applications. It features an I-PEX connector interface for secure mounting and signal transmission. The component supports multiple frequency bands required for modern cellular networks, ensuring reliable connectivity in compact electronic devices.
Antennas RF Feature Summary
- Flat patch design optimized for space-constrained installations
- Integrated I-PEX connector for standardized mounting
- Supports 5G and LTE frequency bands
Antennas RF Applications
- 5G mobile device integration
- LTE communication modules
- Automotive telematics systems
Antennas RF Procurement Notes
Verify the specific I-PEX connector type and mating cable compatibility before integration. Confirm that the antenna's frequency range aligns with the target network standards. Ensure mechanical dimensions fit the designated enclosure space. Check for any required certification marks for the intended market region.
Antennas RF Selection Notes
Choose this model when a low-profile solution is required for 5G and LTE connectivity. The I-PEX interface simplifies assembly compared to soldered alternatives. Consider the physical constraints of the host device to ensure the flat patch form factor meets spatial requirements without compromising signal integrity.
Antennas RF Part Context
INPAQ Technology Co., Ltd specializes in RF antennas and circuit protection components. This part belongs to their portfolio of antennas for computing, communication, and automotive electronics. INPAQ holds a significant market share in GPS and automotive antennas, providing solutions for global markets.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Verify compatibility with existing I-PEX connectors if considering alternative vendors. Ensure any replacement maintains the same frequency coverage and form factor.
