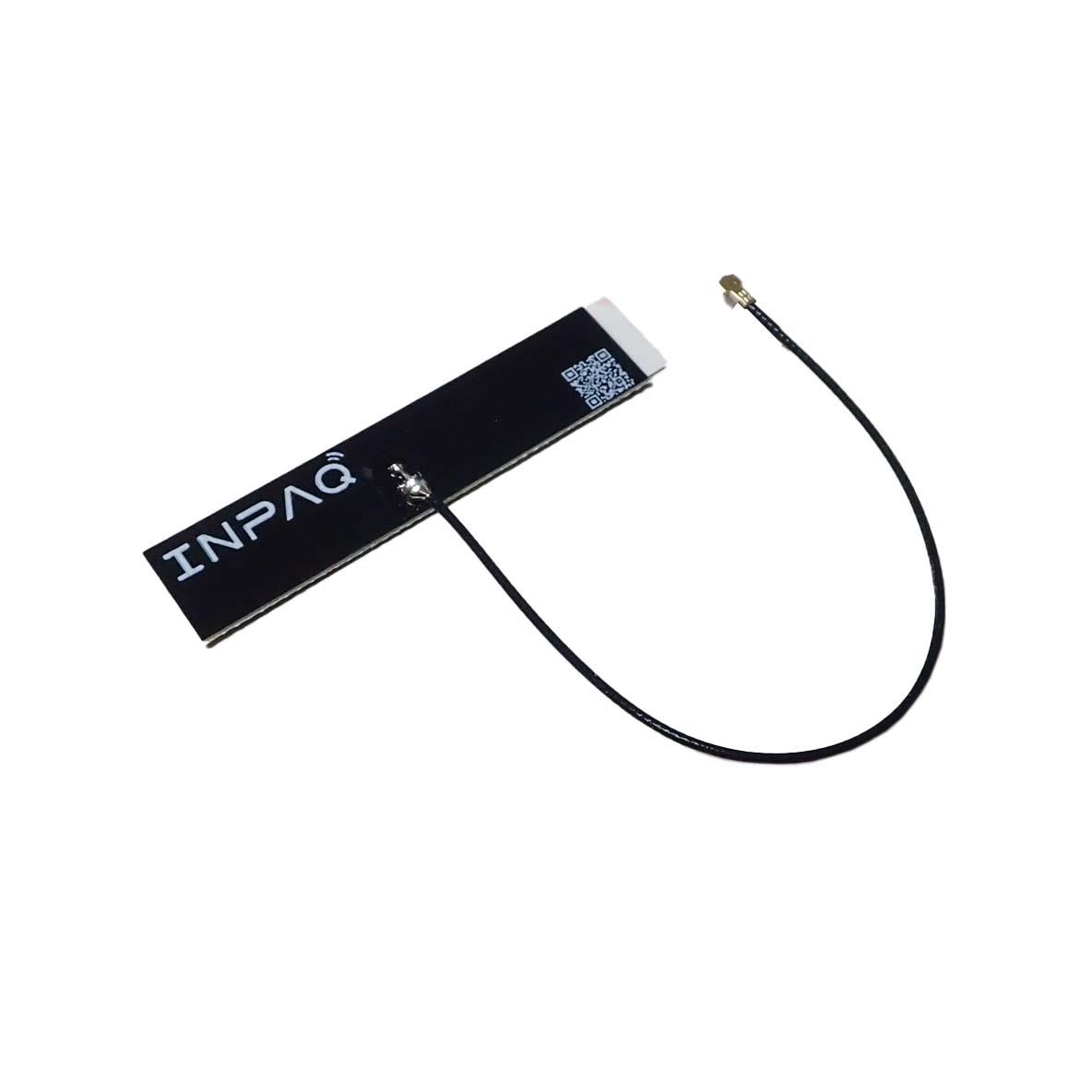

RFPCA441010EMABY01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is PCB ANTENNA2400~2500 MHZ WORKING. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for RFPCA441010EMABY01
- Description：PCB ANTENNA2400~2500 MHZ WORKING
- Series：-
- Mfr：INPAQ Technology Co., Ltd
- Package：Tray
- RF Family/Standard：General ISM
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：3.19dBi
- Features：-
- Termination：I-PEX MHF4
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：-
- Power - Max：1 W
Antennas RF datasheet and documents for RFPCA441010EMABY01
Antennas RF Overview
The RFPCA441010EMABY01 is a PCB antenna manufactured by INPAQ Technology Co., Ltd. designed for operation within the 2400 to 2500 MHz frequency range. The component features a maximum power rating of 1 W and provides a gain of 3.19 dBi. It exhibits a Voltage Standing Wave Ratio (VSWR) of 2. The part status is listed as active, indicating ongoing production and availability for integration into electronic systems requiring wireless connectivity solutions in this specific band.
Antennas RF Feature Summary
- Designed for integrated printed circuit board mounting
- Optimized for 2400-2500 MHz wireless communication bands
- Provides stable signal transmission with defined gain characteristics
Antennas RF Applications
- Wireless local area network (WLAN) devices
- Bluetooth-enabled consumer electronics
- Industrial IoT communication modules
Antennas RF Procurement Notes
Verify that the ordering suffix matches the required configuration, as manufacturer documentation indicates specific suffixes may denote variations. Confirm the standard lead time of six weeks aligns with project schedules. Ensure compatibility with the target PCB layout and ground plane requirements specified in the official datasheet before finalizing procurement orders.
Antennas RF Selection Notes
Select this component when a low-profile PCB antenna is required for the 2.4 GHz ISM band. Consider the 3.19 dBi gain and VSWR of 2 against system link budget requirements. Evaluate the 1 W power handling capability relative to transmitter output levels. Ensure the physical dimensions fit within the device enclosure constraints.
Antennas RF Part Context
INPAQ Technology specializes in RF solutions, including GPS/GNSS antennas and circuit protection components. This model belongs to their portfolio of wireless connectivity products aimed at computer, communication, and consumer electronic markets. The company emphasizes integrated signal journey solutions from connection to power management.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and mechanical footprint compatibility if considering alternative suppliers. Consult manufacturer engineering support for direct cross-reference recommendations.
