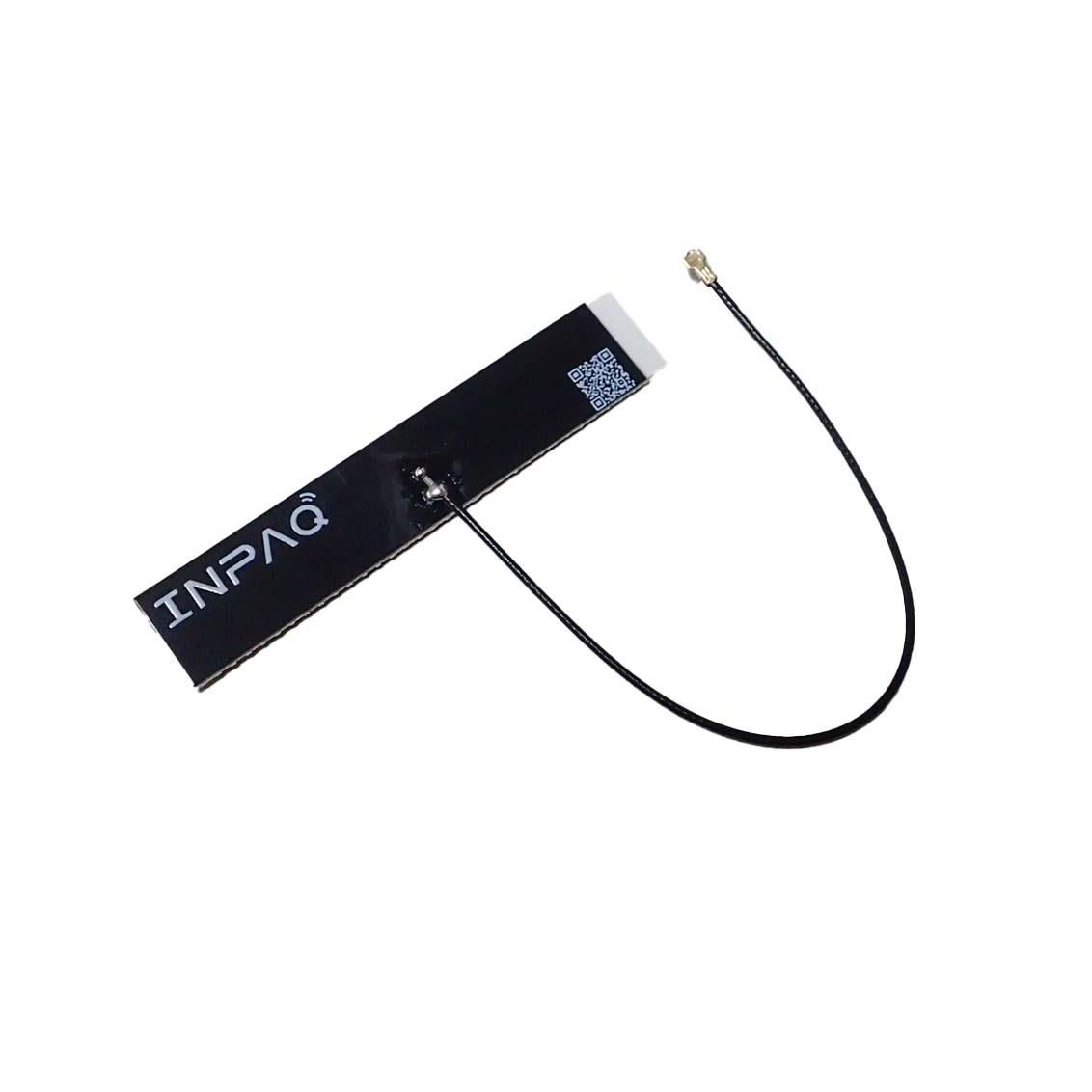

RFPCA501010EMABY01

$1.42

Description：PCB ANTENNA2400~2500 MHZ WORKING
Series：-
Mfr：INPAQ Technology Co., Ltd
Package：Tray

SKU:f06851044649 Category: RF Antennas Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RFPCA501010EMABY01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is PCB ANTENNA2400~2500 MHZ WORKING. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RFPCA501010EMABY01

Description：PCB ANTENNA2400~2500 MHZ WORKING
Series：-
Mfr：INPAQ Technology Co., Ltd
Package：Tray
RF Family/Standard：General ISM
Frequency Group：-
Frequency (Center/Band)：-
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3.12dBi
Features：-
Termination：I-PEX MHF4
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：-
Applications：-
Power - Max：1 W
