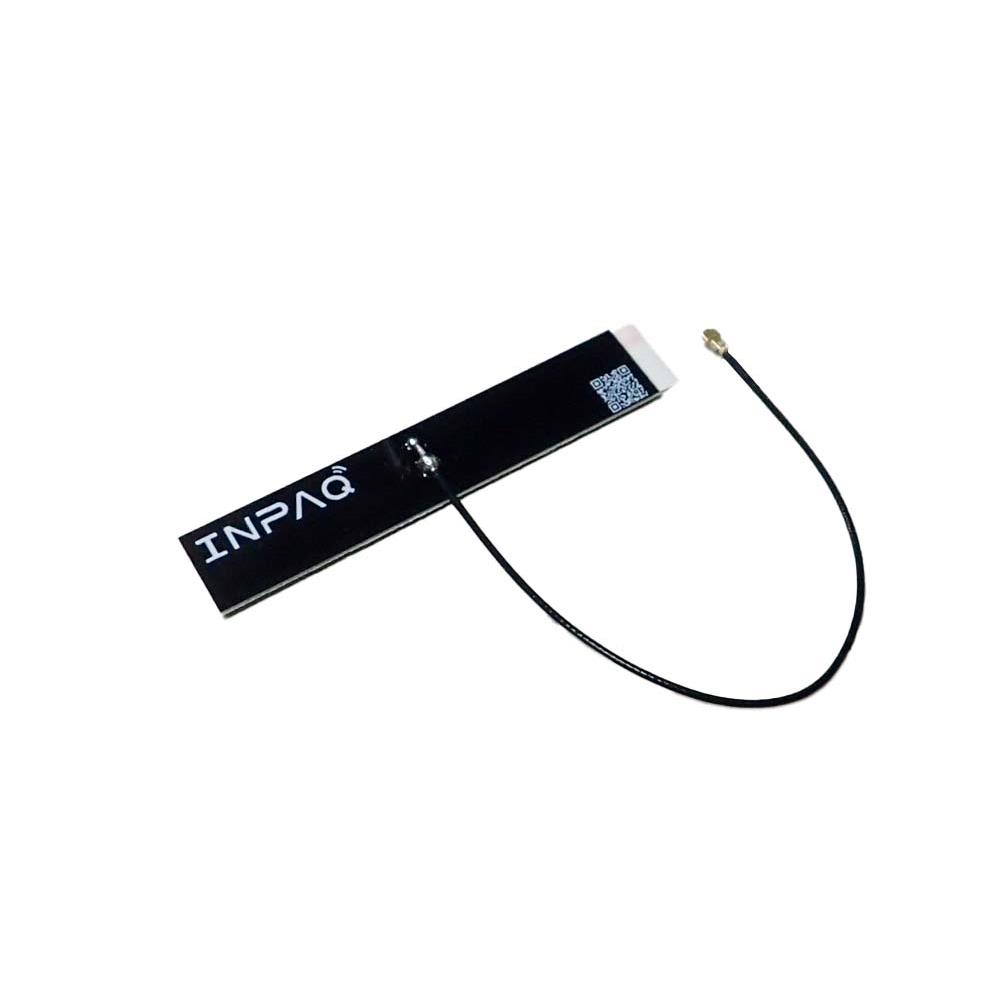

RFPCA521010EMABY01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is PCB ANTENNA2400~2500 MHZ WORKING. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for RFPCA521010EMABY01
- Description：PCB ANTENNA2400~2500 MHZ WORKING
- Series：-
- Mfr：INPAQ Technology Co., Ltd
- Package：Tray
- RF Family/Standard：General ISM
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：3.37dBi
- Features：-
- Termination：I-PEX MHF4
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：-
- Power - Max：1 W
Antennas RF datasheet and documents for RFPCA521010EMABY01
Antennas RF Overview
The RFPCA521010EMABY01 is a PCB antenna manufactured by INPAQ Technology Co., Ltd. It is designed for wireless communication applications operating within the 2400 to 2500 MHz frequency range. This component serves as an integrated radiating element suitable for printed circuit board implementations, supporting standard industrial temperature conditions and reliable surface-mount assembly processes.
Antennas RF Feature Summary
- Integrated PCB antenna design for compact electronic modules
- Optimized radiation performance in the 2400-2500 MHz band
- Suitable for reflow and wave soldering manufacturing processes
Antennas RF Applications
- Wireless data transmission modules
- Bluetooth-enabled consumer electronics
- Industrial IoT sensor nodes
Antennas RF Procurement Notes
Verify the specific datasheet version and mechanical drawing dimensions prior to integration. Confirm that the supplier provides original manufacturer documentation matching the part number RFPCA521010EMABY01. Ensure compatibility with the target PCB layout and impedance requirements before finalizing procurement orders.
Antennas RF Selection Notes
Select this component when a low-profile, integrated antenna solution is required for the 2.4 GHz ISM band. Consider the physical footprint constraints of the PCB design and the surrounding ground plane effects on radiation efficiency. Evaluate thermal management capabilities if the device operates in high-power environments.
Antennas RF Part Context
INPAQ Technology specializes in RF antennas and circuit protection components for computing, communication, and automotive sectors. The company maintains R&D laboratories in Taiwan and mainland China, focusing on innovative electromagnetic solutions and high-reliability passive components for modern electronic systems.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Cross-reference with other INPAQ PCB antennas only if electrical specifications and mechanical dimensions match exactly.
