RG1676-21

Overview

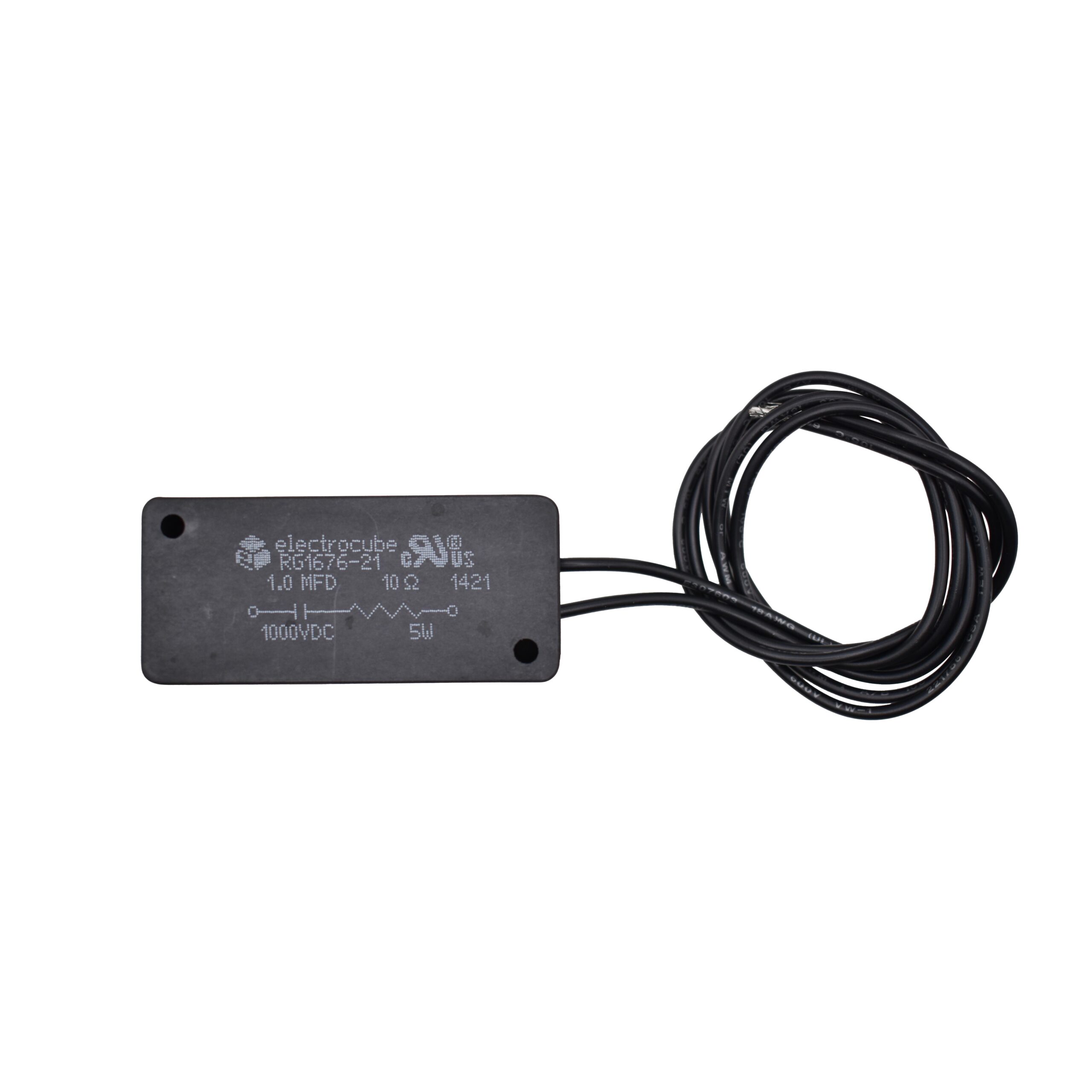

The Electrocube RG1676-21 is a single-phase heavy-duty RC network designed for arc and noise suppression in high-power applications. This panel-mount component integrates a resistor and capacitor to form a first-order low-pass filter, effectively mitigating electromagnetic interference (EMI) and radio frequency interference (RFI). The unit features a robust construction suitable for industrial environments, providing reliable surge suppression and voltage spike protection for sensitive electrical systems.

Feature Summary

• Provides effective arc and noise suppression for heavy-duty power circuits
• Designed as a single-phase RC network for EMI/RFI mitigation
• Panel mount configuration for secure industrial installation

Applications

• Industrial motor control circuits requiring surge protection
• Heavy-duty power supply lines needing noise filtration
• Electrical systems susceptible to voltage spikes and arcs

Procurement Notes

Verify the specific capacitance and resistance values required for your circuit against official datasheets before procurement. Ensure the panel mounting dimensions and lead configurations match your enclosure design. Confirm that the voltage rating of the RG1676-21 exceeds the maximum operating voltage of your application to prevent component failure.

Selection Notes

Select this component when standard filters are insufficient for high-power single-phase applications. It is appropriate for scenarios demanding robust physical construction and significant energy dissipation capabilities. Consider the thermal management requirements of the panel mount location to ensure long-term reliability under continuous load conditions.

Part Context

The RG1676 series represents Electrocube's line of single-phase RC networks engineered for demanding industrial environments. These components are specifically developed to handle greater magnitudes of power compared to standard electronic filters. The series offers various configurations to address diverse suppression needs across different voltage and current ratings within heavy-duty machinery.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement maintains identical phase configuration, voltage ratings, and suppression characteristics to ensure system compatibility.
