RG1676-27

Overview

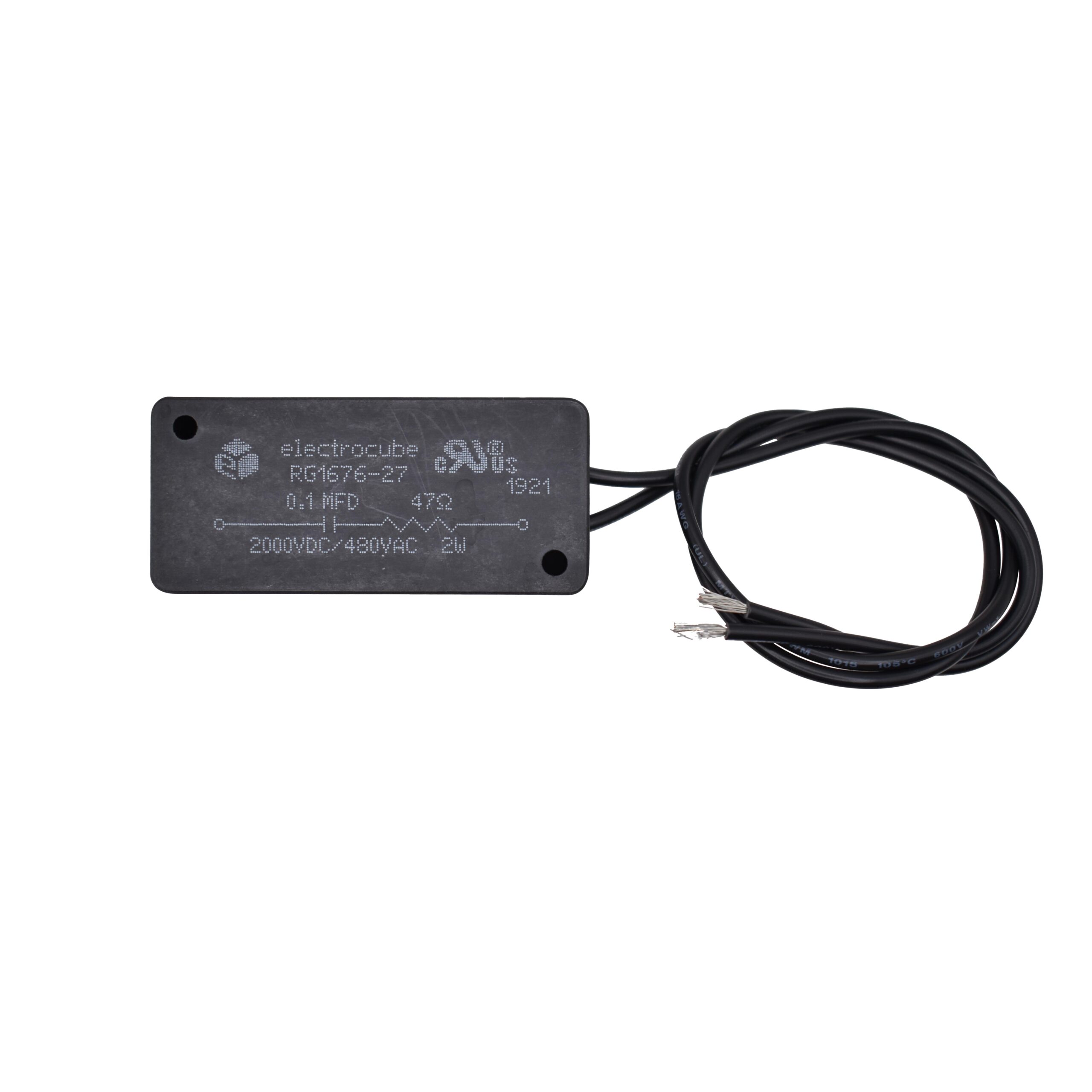

The Electrocube RG1676-27 is a first-order low-pass RC EMI filter designed for single-phase applications. It features a block configuration with four leads for mounting. The component integrates a 47 Ohm resistor and a 0.1 µF capacitor to suppress electromagnetic interference. This series is engineered for arc and noise suppression in heavy-duty environments requiring significant power handling capabilities.

Feature Summary

• Provides effective arc and noise suppression for heavy-duty applications
• Designed as a single-phase RC network for EMI/RFI filtering
• Utilizes a robust block construction suitable for demanding industrial environments

Applications

• Industrial motor control circuits
• Power supply input filtering
• Heavy-duty equipment noise suppression

Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm exact electrical values, as the RG1676 series contains multiple variants with differing resistance and capacitance ratings. Ensure the package type and lead configuration match the design requirements before ordering.

Selection Notes

Select this component when a single-phase RC network is required for high-power noise suppression. Confirm that the 47 Ohm resistance and 0.1 µF capacitance align with the target cutoff frequency and impedance matching needs of the circuit.

Part Context

The RG1676 series consists of single-phase RC networks intended for heavy-duty surge suppression and arc control. These components are distinct from standard signal filters due to their higher power ratings and robust mechanical construction designed for industrial durability.

Replacement Considerations

Cross-reference with other RG1676 variants such as RG1676-1 or RG1676-14 only if the electrical parameters match exactly. Verify pinout compatibility and thermal dissipation requirements before substituting.
