RG1676-3

Overview

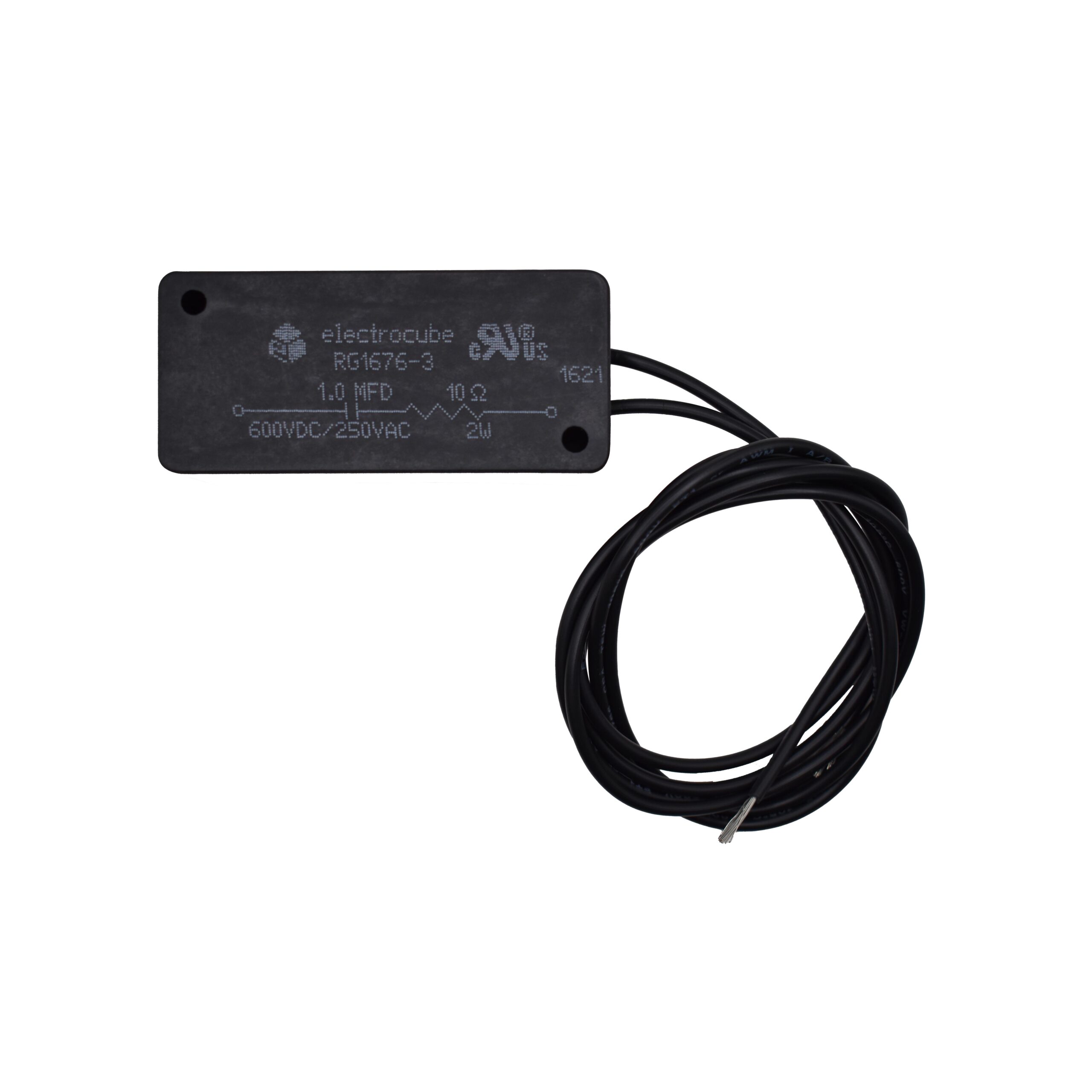

The Electrocube RG1676-3 is a single-phase heavy-duty RC network designed for arc and noise suppression in high-power applications. It functions as a first-order low-pass EMI filter with one channel. The component features a block configuration with four leads. Key electrical parameters include a resistance of 10 Ohms and a capacitance of 1 microfarad.

Feature Summary

• Designed for arc and noise suppression in heavy-duty applications requiring greater magnitudes of power
• Functions as a single-phase RC network for surge suppression
• Constructed as a block-type component with multiple leads

Applications

• Arc suppression in heavy-duty industrial equipment
• Noise suppression in high-power circuits
• EMI filtering for single-phase systems

Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm exact electrical values, as series variants differ. Confirm package type and lead configuration match system requirements. Ensure compatibility with intended voltage and current ratings before integration.

Selection Notes

Select this model for single-phase heavy-duty environments requiring robust arc suppression. Compare resistance and capacitance values against other series members like RG1676-1 or RG1676-14 to ensure alignment with circuit impedance needs. Verify thermal dissipation capabilities for the specific application load.

Part Context

The RG1676 series comprises single-phase heavy-duty RC networks manufactured by Electrocube. These components are engineered for demanding industrial settings where significant power levels necessitate durable surge suppression solutions. The series includes various configurations tailored to different resistance and capacitance requirements.

Replacement Considerations

Cross-reference with RG1676-1 or RG1676-14 only if electrical parameters match. Verify that substitute models maintain the same single-phase heavy-duty rating and block form factor to ensure mechanical and functional compatibility.
