RG1676-38

Overview

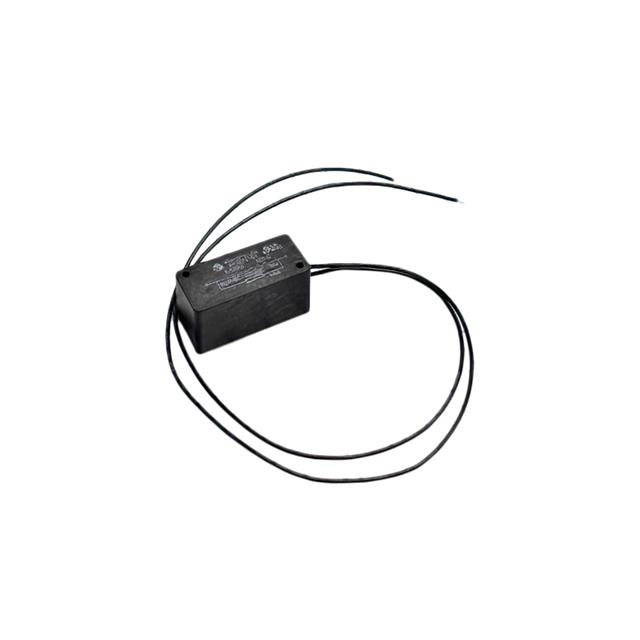

The Electrocube RG1676-38 is a single-phase RC EMI filter designed for arc and noise suppression in heavy-duty applications. It functions as a first-order low-pass network with one channel, featuring a resistance of 50 Ohms and a capacitance of 0.5 µF. The component supports a voltage rating of 600V and utilizes a block package with four leads.

Feature Summary

• Designed for arc and noise suppression in heavy-duty environments
• Functions as a single-phase RC network for EMI filtering
• Constructed as a block-style component for panel mounting

Applications

• Industrial equipment requiring contact arc suppression
• Heavy-duty power circuit noise filtering
• Electronic equipment protection against malfunctions

Procurement Notes

Verify the specific suffix code to ensure compatibility with required voltage and current ratings. Confirm that the 50 Ohm resistance and 0.5 µF capacitance values match the system design specifications. Ensure the block package style fits the intended panel mount configuration before procurement.

Selection Notes

Select this component when heavy-duty arc suppression is required for single-phase circuits. The 50 Ohm resistor and 0.5 µF capacitor combination targets specific frequency ranges for noise reduction. Verify that the 600V rating exceeds the maximum operating voltage of the protected circuit to ensure safety and longevity.

Part Context

This part belongs to the Electrocube RG1676 series of single-phase RC networks. These components are engineered to protect electronic equipment from costly failures caused by electrical noise and arcing. The series offers various configurations tailored for different power magnitudes and suppression requirements.

Replacement Considerations

Cross-reference with other RG1676 variants such as RG1676-16 or RG1676-7 if different resistance or capacitance values are needed. Ensure any substitute maintains the single-phase heavy-duty classification and compatible voltage ratings.
