RG1676-50

Overview

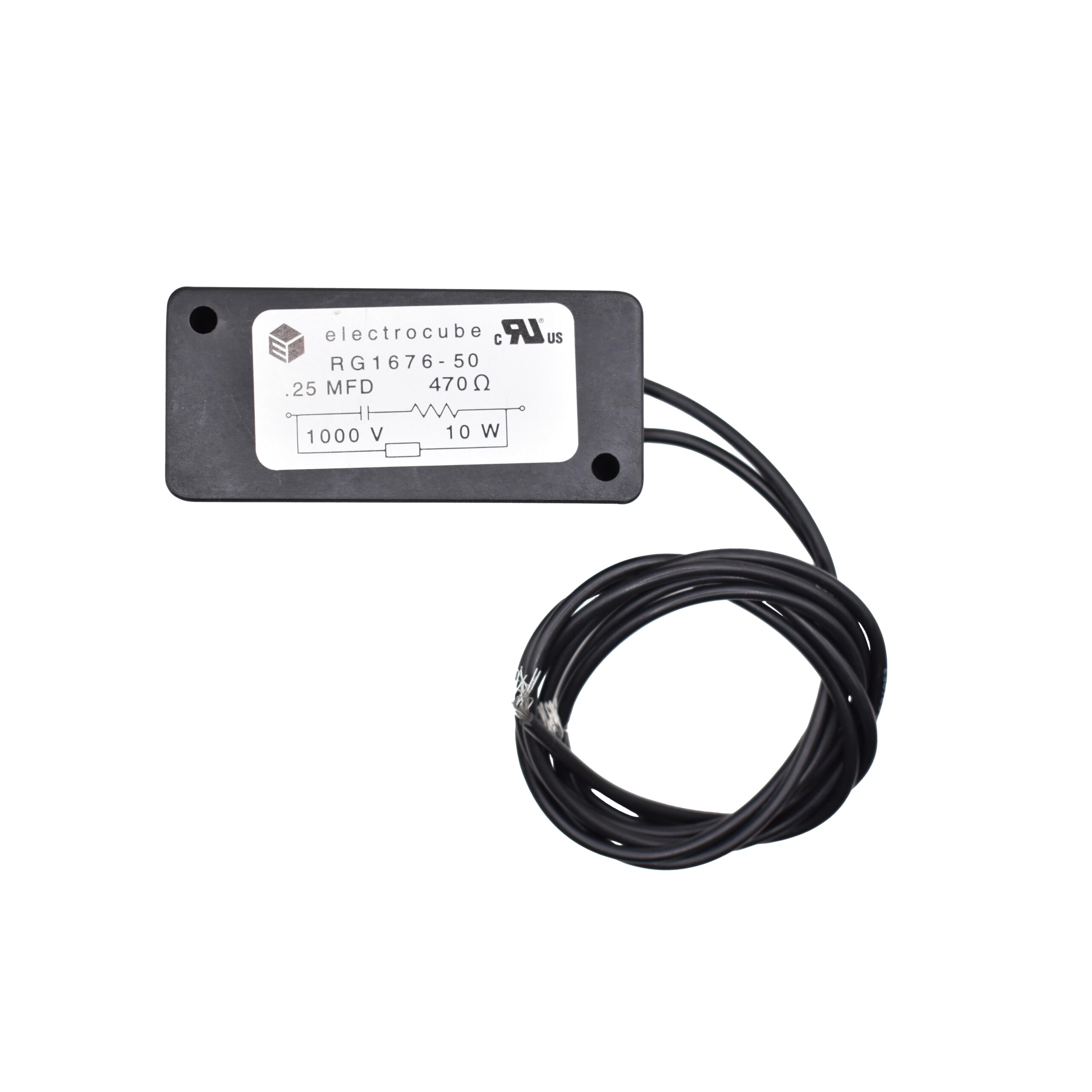

The Electrocube RG1676-50 is a first-order low-pass RC EMI filter designed for single-phase applications. It features a block configuration with four leads and incorporates specific component values to achieve high-frequency attenuation. The unit utilizes a resistor of 470 Ohms and a capacitor of 0.25 microfarads to suppress electrical noise and voltage spikes in heavy-duty industrial environments.

Feature Summary

• Provides high-frequency attenuation through carefully selected resistor-capacitor values
• Designed for arc and noise suppression in heavy-duty applications requiring greater magnitudes of power
• Constructed as a single-phase RC network for effective EMI/RFI filtering

Applications

• Industrial equipment controls
• Environmental control systems
• Medical test equipment

Procurement Notes

Verify the exact part number suffix against manufacturer documentation to confirm component values and lead configuration. Ensure the block package type matches the installation requirements. Confirm that the single-phase rating aligns with the system voltage and current specifications before procurement.

Selection Notes

Select this component when high-frequency noise suppression is required in single-phase circuits. The RC network design offers a cost-effective solution for arc suppression. Consider the physical block dimensions and lead arrangement during mechanical integration planning.

Part Context

The RG1676 series consists of single-phase heavy-duty RC networks intended for surge suppression and noise reduction. These components are utilized across various industries including medical, environmental, and test equipment sectors to protect sensitive electronics from electrical interference.

Replacement Considerations

Cross-reference with other RG1676 variants such as RG1676-10 or RG1676-14 only if the differing resistor and capacitor values meet the specific circuit requirements. Verify compatibility with existing mounting hardware.
