RG1676-54

Overview

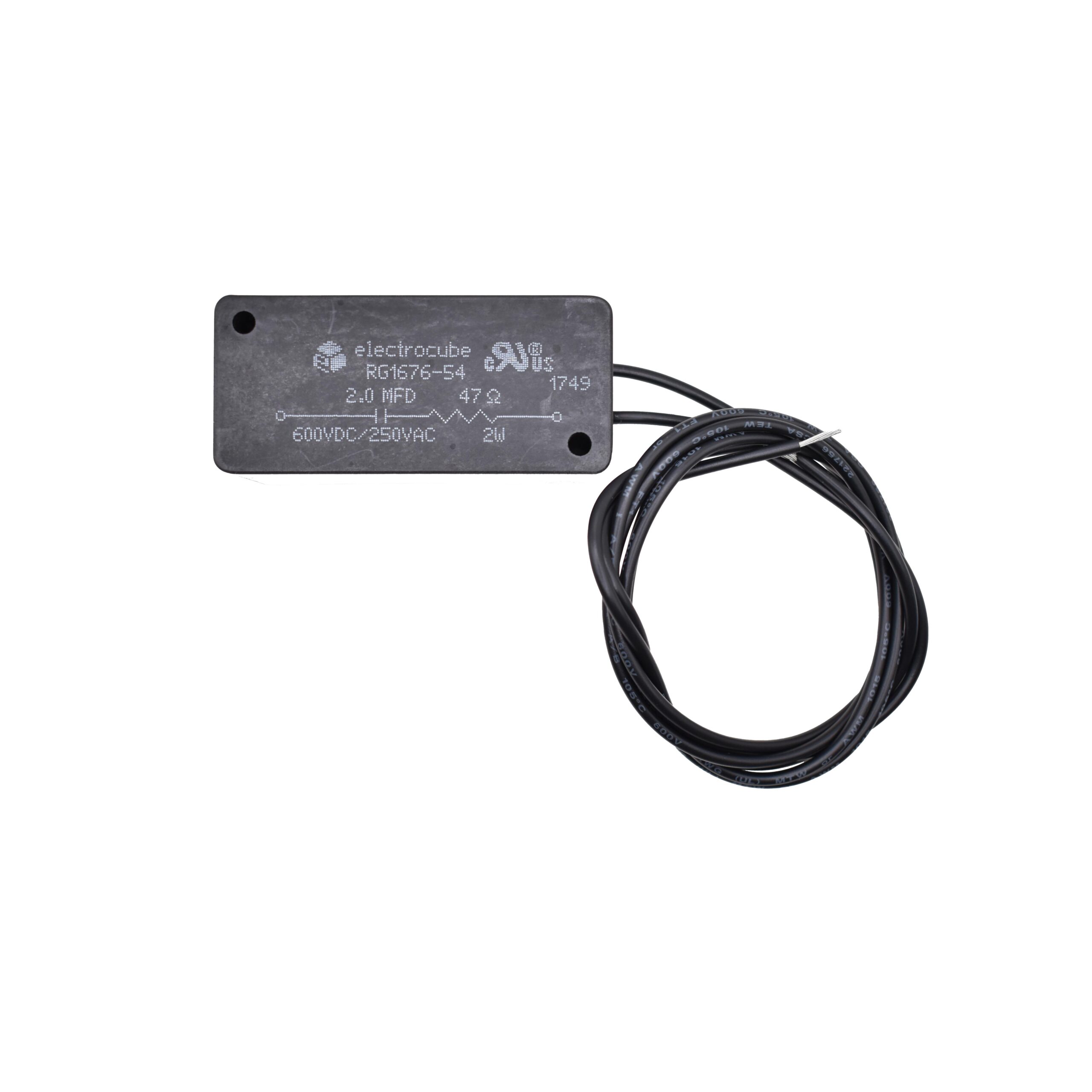

The Electrocube RG1676-54 is a first-order low-pass RC EMI filter designed for single-phase applications. It features a block configuration with four leads for panel mounting. The component integrates a resistor of 47 Ohms and a capacitor of 2 microfarads to suppress electrical noise and arcs in heavy-duty environments.

Feature Summary

• Provides effective electromagnetic interference suppression through integrated RC network topology
• Engineered for arc and noise reduction in high-power industrial settings
• Utilizes a robust block form factor suitable for direct panel installation

Applications

• Heavy-duty machinery noise suppression
• Industrial power circuit arc suppression
• Single-phase equipment EMI filtering

Procurement Notes

Verify the specific suffix number against manufacturer documentation to confirm exact resistance and capacitance values, as the RG1676 series contains multiple variants with distinct electrical parameters. Ensure the package type matches the required mounting configuration before finalizing procurement orders.

Selection Notes

Select this component when single-phase RC filtering is required for heavy-duty loads. Confirm that the 47 Ohm resistance and 2 microfarad capacitance align with the target circuit's impedance and frequency requirements. Verify voltage ratings and physical dimensions fit the enclosure constraints.

Part Context

This part belongs to the Electrocube RG1676 series of single-phase RC networks. These components are specifically designed for surge suppression and noise control in demanding industrial applications where standard filters may not withstand the operational stress or power levels.

Replacement Considerations

Cross-reference with other RG1676 variants such as RG1676-10 or RG1676-16 only if their specific R and C values match the circuit design. Generic RC networks lack the heavy-duty construction and specific tuning of this series.
