RG1676-56

Overview

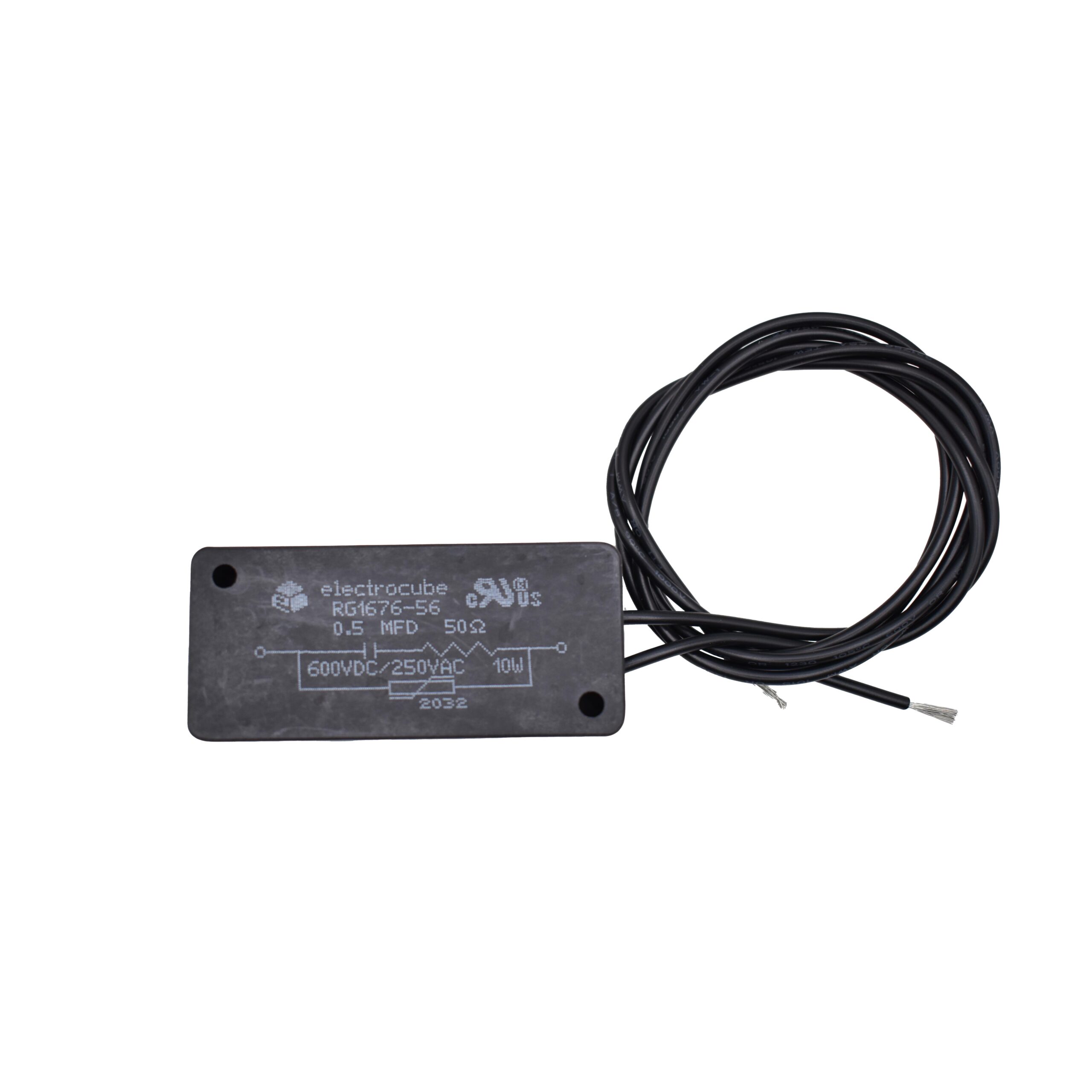

The Electrocube RG1676-56 is a first-order low-pass RC EMI filter designed for single-phase applications. It features a block configuration with four leads, providing electromagnetic interference suppression. The component integrates a resistance of 50 Ohms and a capacitance of 0.5 microfarads within its circuit topology. This specific model variant offers defined electrical parameters suitable for noise reduction in industrial environments requiring standardized filtering characteristics.

Feature Summary

• Designed as a first-order low-pass RC network for effective EMI suppression
• Constructed in a block format with four lead connections for mounting
• Engineered for single-phase heavy-duty applications requiring arc and noise control

Applications

• Industrial motor control centers
• Heavy-duty power supply noise suppression
• Arc suppression in switching circuits

Procurement Notes

Verify the exact suffix designation against manufacturer documentation to confirm the specific resistance and capacitance values, as the RG1676 series contains multiple variants with differing electrical ratings. Ensure compatibility with single-phase systems and confirm lead configuration matches the intended PCB or terminal block layout before procurement.

Selection Notes

Select this component when a first-order low-pass response is sufficient for the target frequency range. The 50 Ohm resistor and 0.5 µF capacitor combination defines the cutoff frequency; ensure this aligns with system requirements. Consider the block package size for spatial constraints and verify thermal dissipation capabilities for the expected current load in the application.

Part Context

The RG1676 series comprises single-phase RC networks intended for heavy-duty use. These components are primarily utilized for surge suppression and noise reduction in industrial settings. The series includes various models differentiated by their specific R and C values, catering to different voltage and current requirements across similar form factors.

Replacement Considerations

Direct substitutes must match the 50 Ohm resistance, 0.5 µF capacitance, and single-phase block configuration. Verify that alternative components meet the same voltage ratings and physical footprint requirements to ensure seamless integration without modifying the existing circuit board or wiring harness.
