RG1780-6

Overview

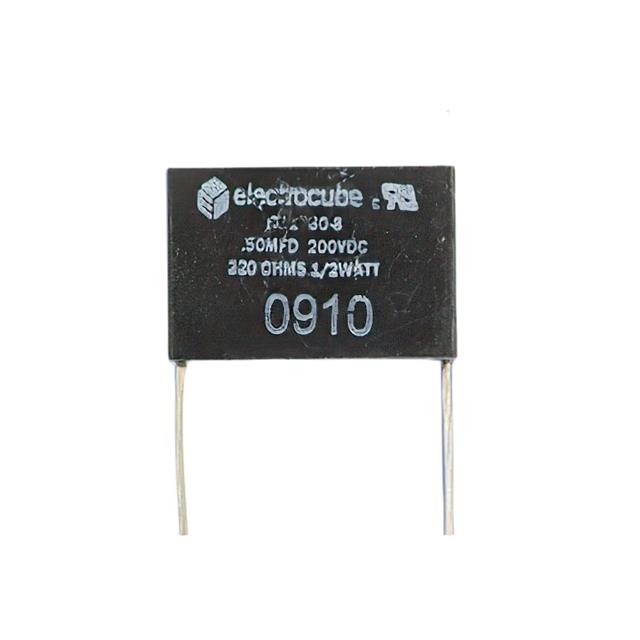

The Electrocube RG1780-6 is a single-phase RC EMI filter designed for printed circuit board mounting. It functions as a first-order low-pass filter with one channel, utilizing a radial through-hole package. The component integrates a resistor and capacitor network to suppress electromagnetic interference in power circuits.

Feature Summary

• Compact form factor enabling side-by-side PCB mounting
• Single-phase RC network configuration for EMI suppression
• Radial leaded construction for through-hole integration

Applications

• Power supply input filtering
• Motor control cabinet installations
• Renewable energy system power conversion

Procurement Notes

Verify the specific resistance value against project requirements, as Electrocube's RG1780 series includes variants with different ohmic ratings such as 220 Ohm or 47 Ohm. Confirm that the 0.5µF capacitance rating aligns with the target noise frequency spectrum. Ensure the voltage rating meets the circuit's operational DC and AC limits before procurement.

Selection Notes

Select this component when space-constrained PCB layouts require compact EMI filtering solutions. It is suitable for applications needing reliable attenuation of high-frequency noise without complex multi-stage designs. Verify thermal performance within the specified -40°C to +80°C range for the intended operating environment.

Part Context

Electrocube manufactures this component as part of their high-reliability line supporting modern renewable energy systems. The RG1780 series provides steady power conversion and control capabilities. These components are engineered for durability in industrial automation and power electronics environments.

Replacement Considerations

Cross-reference with other RG1780 series variants like RG1780-3 or RG1780-8 if resistance values differ. Ensure substitute parts maintain the same radial case style and 0.5µF capacitance to preserve filter characteristics.
