RG1782-2

Overview

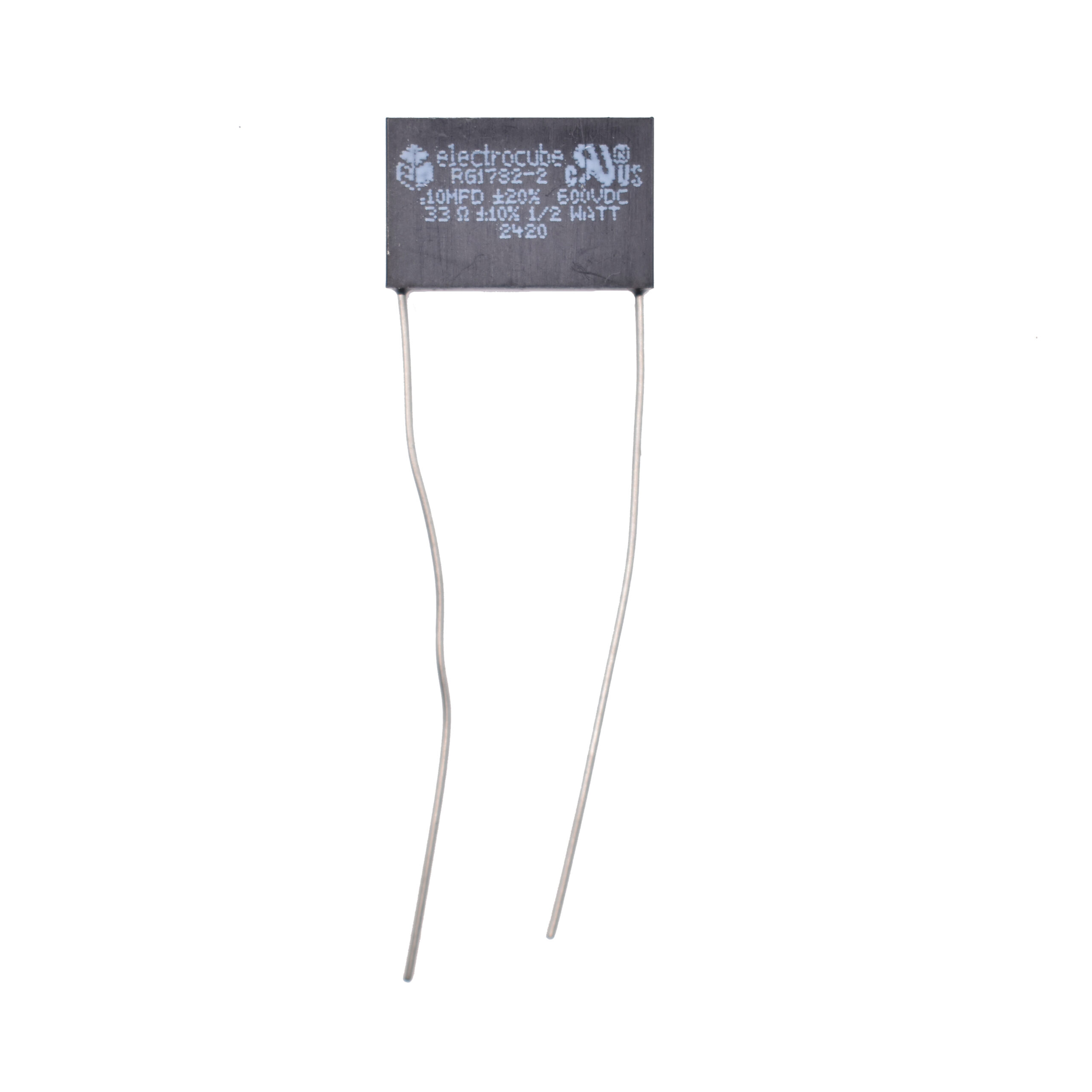

The Electrocube RG1782-2 is a single-phase RC EMI filter network designed for printed circuit board mounting. It functions as a first-order low-pass filter with one channel, utilizing a 33-ohm resistor and a 0.1-microfarad capacitor. The component supports a maximum voltage of 600VDC. Its radial lead configuration facilitates side-by-side installation on PCBs.

Feature Summary

• Single-phase RC network architecture
• First-order low-pass filtering capability
• Radial lead package for compact PCB integration

Applications

• Electromagnetic interference suppression in industrial systems
• Power line noise reduction for single-phase circuits
• Signal conditioning in electronic control units

Procurement Notes

Verify the specific manufacturer designation when sourcing this component, as availability may vary between original equipment manufacturer stock and surplus distributors. Confirm that the received unit matches the RG1782-2 specification exactly, particularly regarding the 33-ohm resistance and 0.1-microfarad capacitance values, to ensure proper circuit functionality.

Selection Notes

Select this component for applications requiring simple, cost-effective EMI filtering in single-phase environments. The radial design allows for efficient space utilization on densely populated boards. Ensure the operating voltage does not exceed the 600VDC rating and that the frequency response characteristics align with the target noise spectrum.

Part Context

This part belongs to the Electrocube RG series of RC networks, which are engineered for robust performance in demanding electrical environments. The series offers various configurations tailored for different phase requirements and filtering needs, providing standardized solutions for noise mitigation in power and signal lines.

Replacement Considerations

Direct substitutes include other single-phase RC networks with identical 33-ohm and 0.1-microfarad specifications. Verify that any replacement maintains the same radial footprint and voltage rating to ensure mechanical and electrical compatibility within the existing assembly.
