RG1782-6

Overview

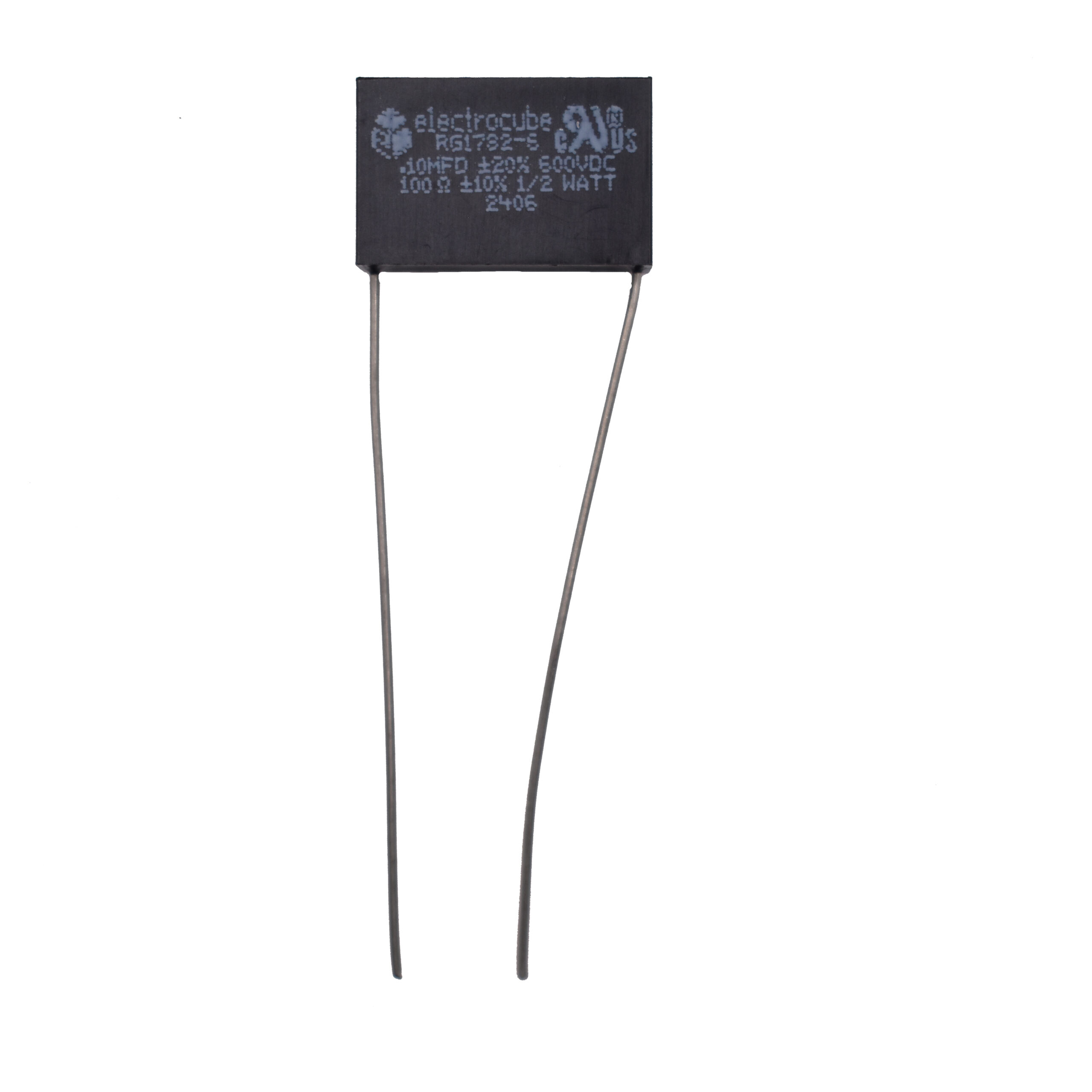

The Electrocube RG1782-6 is a single-phase RC EMI filter designed for printed circuit board mounting. It features a low-pass configuration with a resistance of 100 Ohms and a capacitance of 0.1 µF. The component supports a voltage rating of 900V and a power dissipation of 0.5 W. It utilizes #20 AWG tinned solid wire leads and measures 0.63 inches by 1 inch by 0.38 inches.

Feature Summary

• Single-phase RC network architecture for EMI suppression
• PC mount design enabling compact side-by-side installation
• Integrated resistor-capacitor topology for noise filtering

Applications

• Electronic equipment requiring EMI/RFI suppression
• Power supply input filtering
• Industrial control circuits

Procurement Notes

Verify the specific manufacturer part number against official Electrocube documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing PCB layouts and thermal requirements before procurement. Cross-reference datasheets for lead finish and mounting specifications.

Selection Notes

Select this component based on its specific 100 Ohm resistance and 0.1 µF capacitance values required for the target frequency response. Consider the 900V rating and 0.5W power handling capabilities relative to the circuit's operating conditions. Verify that the PC mount form factor fits within the available board space constraints.

Part Context

This component belongs to the Electrocube RG1782 series of RC networks. These are manufactured as arc suppressing resistor-capacitor units. The series includes various configurations tailored for different voltage and capacitance requirements in electronic applications.

Replacement Considerations

Consult official Electrocube substitution guides for verified equivalents. Generic RC networks may not match the specific package dimensions or lead configurations required for direct replacement without modification.
