Product Detailed Parameters
- Description：FILTER RC 220OHM/0.1UF TH
- Series：-
- Mfr：Electrocube
- Package：Box
- Type：Low Pass
- Filter Order：1st
- Technology：RC
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：-
- Values：R = 220Ohm, C = 0.1µF
- ESD Protection：No
- Operating Temperature：-40°C ~ 80°C
- Applications：General Purpose
- Voltage - Rated：600V
- Mounting Type：Through Hole
- Package / Case：Radial
- Size / Dimension：1.000" L x 0.380" W (25.40mm x 9.65mm)
- Height：0.660" (16.76mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

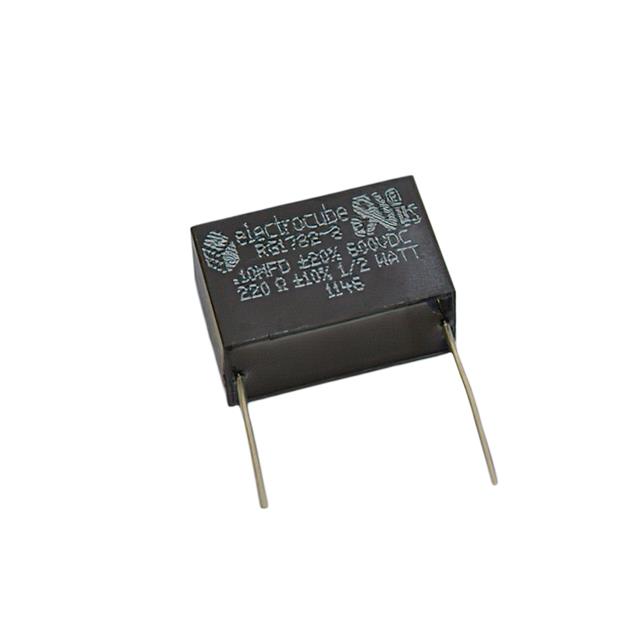

The Electrocube RG1782-8 is a single-phase RC network designed for printed circuit board mounting. It integrates a resistor and capacitor to suppress contact arcing and filter electromagnetic interference. The component features a capacitance of 0.1 µF with a tolerance of ±20%, a resistance value of 220 Ohms, and a voltage rating of 600 VDC. It is constructed for compact side-by-side installation in electronic circuits requiring reliable noise suppression.
Feature Summary
- Suppresses contact arcing to protect electronic equipment from malfunctions
- Compact design enables easy side-by-side printed circuit board mounting
- Single-phase configuration for targeted EMI/RFI filtering
Applications
- Protection against costly failures in electronic equipment
- Suppression of contact arcing in switching circuits
- EMI/RFI filtering in single-phase applications
Procurement Notes
Verify the specific suffix code against manufacturer documentation to confirm exact electrical parameters, as variations exist within the series. Confirm package type and pin configuration match the target PCB layout. Ensure voltage ratings meet or exceed system requirements. Check for authorized distribution channels to guarantee component authenticity and traceability.
Selection Notes
Select this component based on its specific 0.1 µF capacitance and 220 Ohm resistance values required for the intended filtering application. Evaluate the 600 VDC rating against peak circuit voltages. Consider the physical dimensions for space-constrained PCB layouts where side-by-side mounting is necessary. Verify compatibility with single-phase systems.
Part Context
The RG1782-8 belongs to the Electrocube RG1782 series of RC networks. This series offers a range of components tailored for suppressing contact arcing and filtering noise in electronic circuits. The series is characterized by compact sizes suitable for printed circuit board integration, providing versatile solutions for EMI/RFI mitigation in various industrial and commercial applications.
Replacement Considerations
Cross-reference part numbers such as RG1782-3 or RG1782-6 only if their electrical specifications (capacitance, resistance, voltage) align with the original design requirements. Verify that any substitute maintains the same single-phase RC network topology and mounting style.
