Product Detailed Parameters

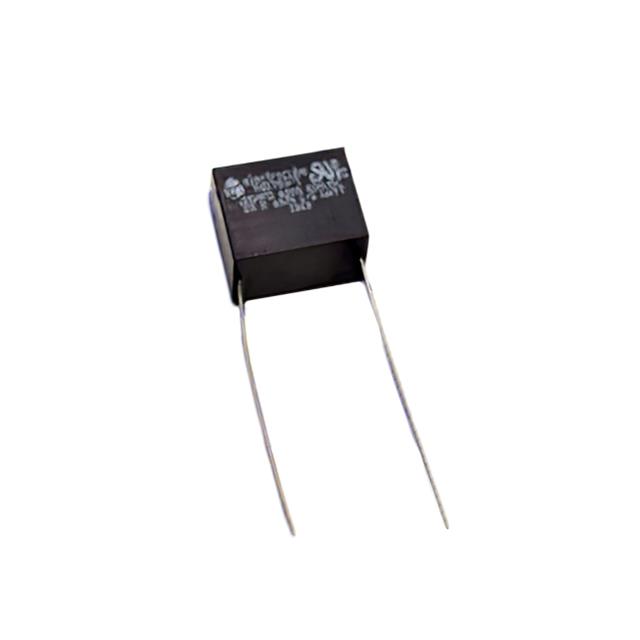

- Description：FILTER RC 470OHM/0.25UF TH
- Series：-
- Mfr：Electrocube
- Package：Box
- Type：Low Pass
- Filter Order：1st
- Technology：RC
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：-
- Values：R = 470Ohm, C = 0.25µF
- ESD Protection：No
- Operating Temperature：-40°C ~ 80°C
- Applications：General Purpose
- Voltage - Rated：600V
- Mounting Type：Through Hole
- Package / Case：Radial
- Size / Dimension：1.000" L x 0.500" W (25.40mm x 12.70mm)
- Height：0.780" (19.81mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview
The Electrocube RG1783-10 is a single-phase heavy-duty RC network designed for EMI/RFI suppression. It features a radial through-hole mounting configuration with dimensions of 1.000" L x 0.500" W. The component is rated for 900V and operates within a temperature range of -40°C to 80°C. Electrical specifications include a capacitance of 0.25 MFD (±20%) and a resistance of 470 Ohms. It is constructed as a PC mount unit suitable for general-purpose applications.
Feature Summary
- Provides integrated RC filtering for single-phase circuits
- Heavy-duty construction for robust performance
- Compact radial package enables side-by-side mounting
Applications
- General purpose EMI/RFI suppression
- Single-phase power line filtering
- PC board mounted noise reduction
Procurement Notes
Verify the specific suffix against official datasheets, as variants like RG1783-10 differ in resistance values from other series members. Confirm voltage ratings and physical dimensions match the design requirements before integration. Ensure compatibility with the intended PCB layout and thermal environment.
Selection Notes
Select this component when a pre-assembled RC network is required for single-phase applications. Consider the 900V rating and 0.25 MFD capacitance for appropriate noise filtering needs. Evaluate the radial through-hole package constraints against available PCB space and mounting orientation requirements.
Part Context
This part belongs to the Electrocube RG1783 series of single-phase RC networks. These components are engineered for compact EMI/RFI suppression in electronic systems. The series offers various configurations to suit different circuit impedance and voltage requirements while maintaining a small footprint for dense PCB layouts.
Replacement Considerations
Direct substitutes may include other single-phase RC networks with matching 0.25 MFD capacitance and 470 Ohm resistance. Verify that alternative components meet the 900V rating and -40°C to 80°C operating temperature range. Check for compatible radial through-hole packaging and similar physical dimensions.
