RG1783-6

Overview

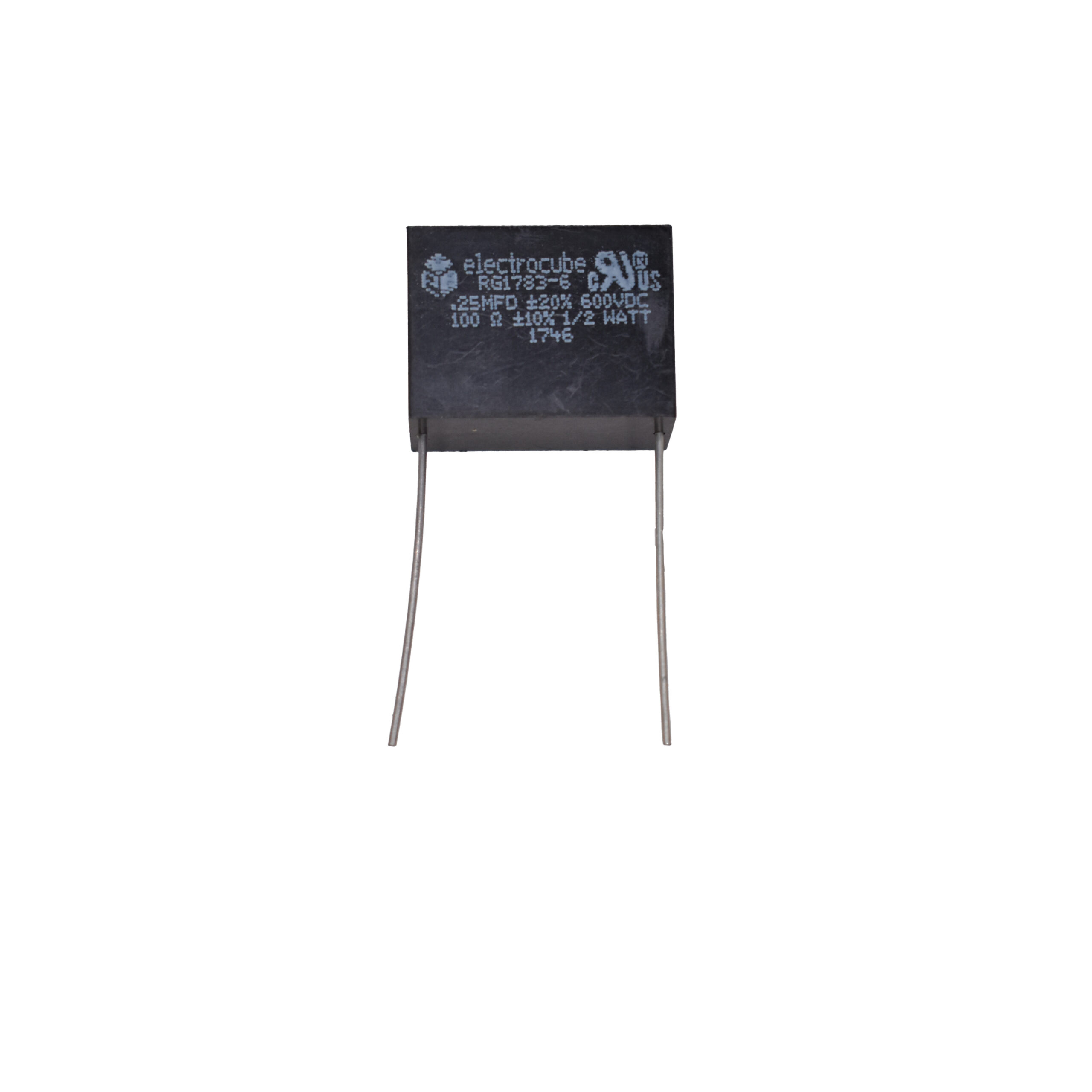

The Electrocube RG1783-6 is a single-phase RC network designed for PC mount applications. It features solid wire connections and a radial package with dimensions of 1.000 inches in length by 0.500 inches in width. The component has a capacitance of 0.25 microfarads with a tolerance of ±20%, a rated voltage of 600V DC, and a resistance of 100 ohms. The power rating is specified as 1/2 watt.

Feature Summary

• Designed to prevent or substantially minimize arcing and noise generation in relay and switch contacts
• Compact size allows for easy side-by-side mounting on printed circuit boards
• Constructed with solid wire connections for reliable PC mount integration

Applications

• General purpose EMI/RFI filtering
• Suppression of contact arcing in relays
• Noise reduction in switch circuits

Procurement Notes

Verify the specific suffix code against official Electrocube documentation to confirm exact electrical tolerances and physical dimensions. Ensure the procurement specification matches the required 600V DC rating and 100 ohm resistance value. Confirm that the radial through-hole package aligns with the target PCB layout constraints before finalizing orders.

Selection Notes

Select this component when a compact, single-phase RC network is required for suppressing transient noise in low-to-medium voltage DC circuits. The 1/2 watt power rating and 600V DC capability define its operational limits. Consider the radial package style for standard through-hole assembly processes where space efficiency is prioritized alongside basic filtering performance.

Part Context

This part belongs to the Electrocube RG1783 series of single-phase RC networks. These components are engineered to protect electronic equipment from costly failures caused by contact arcing. The series offers various configurations to suit different voltage and capacitance requirements within industrial environments.

Replacement Considerations

Cross-reference with RG1988-6 if higher voltage ratings (900V) are acceptable. Verify compatibility with RG1783-1 only if resistance values differ significantly. Ensure substitute parts maintain the same radial package and mounting style for direct replacement.
