RG1783-8

Overview

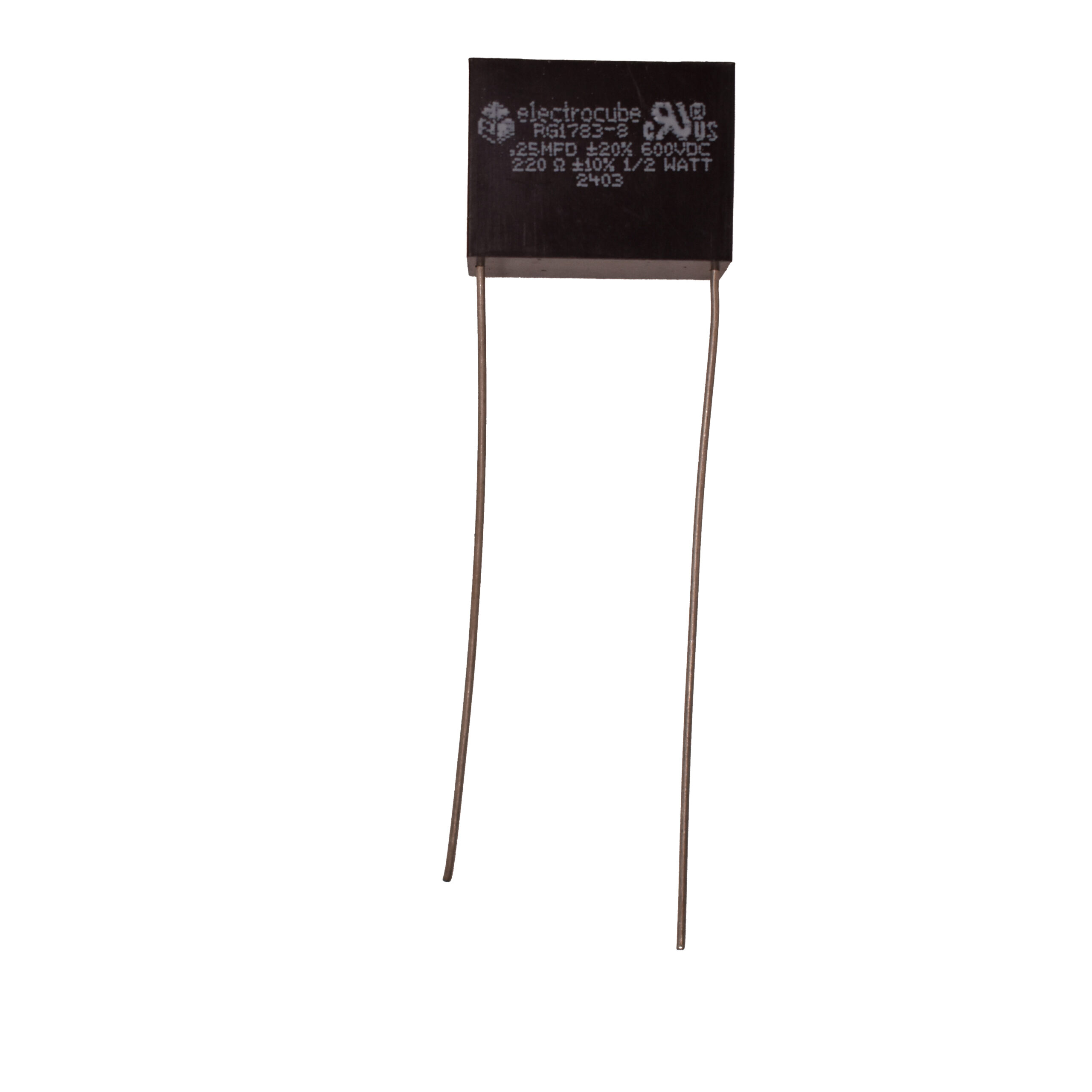

The Electrocube RG1783-8 is a single-phase heavy-duty RC network designed for through-hole mounting. It features a radial package with dimensions of 1.000 inches in length and 0.500 inches in width. The component is rated for 600V DC and 250V AC. It incorporates a resistance value of 220 Ohms and a capacitance of 0.25 microfarads with a tolerance of plus or minus 20 percent. The unit utilizes #20 AWG tinned solid wire leads for connection.

Feature Summary

• Single-phase RC network configuration for contact arc suppression
• Heavy-duty construction suitable for demanding industrial environments
• Compact radial design enabling easy side-by-side PCB mounting

Applications

• General purpose electronic equipment protection
• Contact arc suppression in switching circuits
• Filtering applications requiring single-phase RC networks

Procurement Notes

Verify the specific voltage rating and capacitance tolerance against the application requirements before procurement. Confirm that the radial through-hole package and lead wire specifications match the target PCB layout. Ensure the component meets the necessary environmental standards for the intended industrial use case.

Selection Notes

Select this model when a robust single-phase RC network is required for general-purpose filtering or arc suppression. The heavy-duty build quality makes it suitable for industrial settings where reliability is critical. Consider the physical dimensions and through-hole mounting style to ensure compatibility with the assembly process.

Part Context

This component belongs to the Electrocube RG1783 series of single-phase RC networks. The series is engineered to protect electronic equipment from costly failures by suppressing contact arcing. These networks are characterized by their rugged construction and precision engineering, ensuring reliable performance in various industrial applications.

Replacement Considerations

Cross-reference with other single-phase RC networks offering similar 600V DC ratings and comparable capacitance values. Verify that any substitute maintains the same radial mounting style and physical footprint to ensure seamless integration into existing designs.
