RG1784-1

Overview

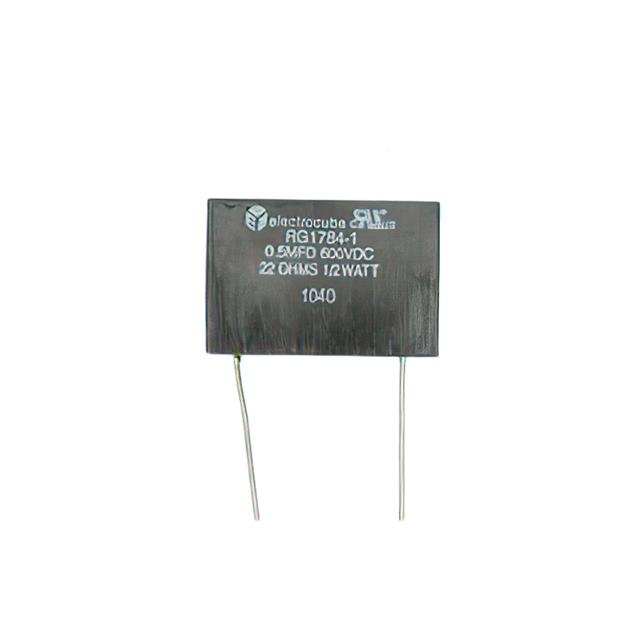

The Electrocube RG1784-1 is a single-phase RC EMI filter network designed for printed circuit board mounting. It features a first-order low-pass configuration with a resistance of 22 Ohms and a capacitance of 0.5 µF. The component supports a minimum operating voltage of 600 VDC and 250 VAC, with a power rating of 1/2 W. Physical dimensions are 1.250 inches in length, 0.580 inches in width, and 0.870 inches in height. Operating temperature ranges from -40°C to 80°C.

Feature Summary

• First-order low-pass RC network topology for EMI suppression
• Compact radial design enabling side-by-side PCB mounting
• Tinned #20 AWG solid wire leads for standard termination

Applications

• Single-phase AC line filtering
• Printed circuit board EMI suppression
• Low-pass signal conditioning networks

Procurement Notes

Verify the specific manufacturer designation, as Electrocube products may be distributed under related brand names such as SEACOR or Radwell. Confirm lead compatibility and voltage ratings against original equipment specifications before integration. Ensure the component matches the required 22 Ohm resistance and 0.5 µF capacitance values for the intended circuit application.

Selection Notes

Select this component for applications requiring compact, through-hole RC filtering solutions. The radial lead format facilitates easy installation on standard PCBs. Consider the 600 VDC rating when designing for higher voltage DC lines or peak AC voltages. Verify thermal constraints within the -40°C to 80°C range for the specific operational environment.

Part Context

The RG1784-1 belongs to the Electrocube RG1784 series of single-phase RC networks. This series offers various resistance and capacitance combinations tailored for different EMI filtering requirements. The components are characterized by their small footprint and robust construction, suitable for industrial and commercial electronic assemblies requiring reliable noise reduction.

Replacement Considerations

Direct substitutes include other single-phase RC networks with identical 22 Ohm and 0.5 µF specifications. Verify physical dimensions and lead spacing to ensure mechanical compatibility. Cross-reference part numbers such as those from SEACOR if available, ensuring electrical parameters match exactly.
