RG1784-10

Overview

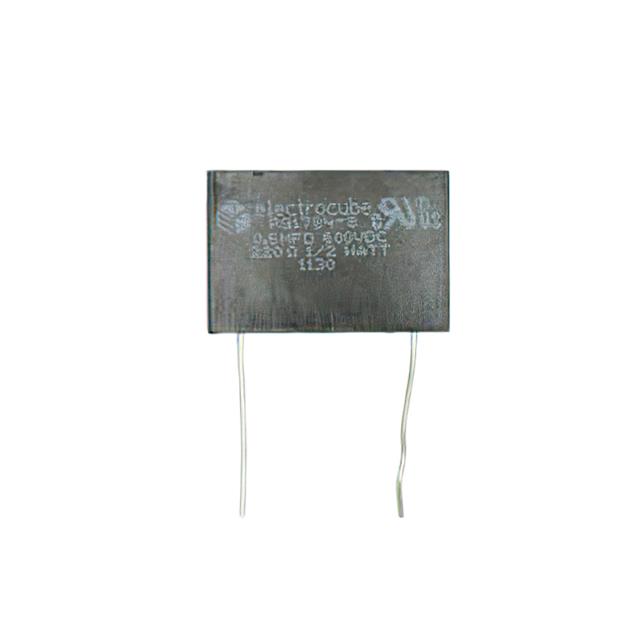

The Electrocube RG1784-10 is a single-channel, first-order low-pass RC EMI/RFI filter designed for panel mounting. It integrates a 470 Ohm resistor and a 0.5 µF capacitor to suppress electromagnetic interference in electrical circuits. The component operates at 600 VDC and 250 VAC with a 10% tolerance on passive values. Its radial lead configuration facilitates installation in industrial equipment and control panels requiring compact noise filtration solutions.

Feature Summary

• Single-channel low-pass filtering architecture
• Integrated RC network for EMI suppression
• Panel-mountable design with radial leads

Applications

• Industrial equipment noise reduction
• Electrical control panel filtering
• EMI mitigation in power circuits

Procurement Notes

Verify the specific suffix or variant against official Electrocube documentation to confirm exact capacitance and resistance tolerances. Ensure the voltage ratings align with system requirements before procurement. Cross-reference part numbers carefully as distributor listings may vary in accuracy regarding technical specifications.

Selection Notes

Select this component when a fixed-value, single-phase RC filter is required for low-frequency noise attenuation. Consider the physical dimensions and lead spacing for PCB or panel integration. Verify that the 470 Ohm resistance value does not adversely affect circuit operation under load conditions.

Part Context

This part belongs to the Electrocube RG1784 series of RC networks. These components are engineered for robust performance in harsh environments. The series offers various configurations tailored for different voltage and current applications in industrial settings.

Replacement Considerations

Check for direct substitutes within the RG1784 series or equivalent RC networks from other manufacturers. Ensure replacement parts match the 0.5 µF capacitance and 470 Ohm resistance values precisely.
