Product Detailed Parameters
- Description：FILTER RC 100OHM/0.5UF TH
- Series：-
- Mfr：Electrocube
- Package：Bulk
- Type：Low Pass
- Filter Order：1st
- Technology：RC
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohm, C = 0.5µF
- ESD Protection：No
- Operating Temperature：-40°C ~ 80°C
- Applications：General Purpose
- Voltage - Rated：600V
- Mounting Type：Through Hole
- Package / Case：Radial
- Size / Dimension：1.250" L x 0.580" W (31.75mm x 14.73mm)
- Height：0.870" (22.10mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

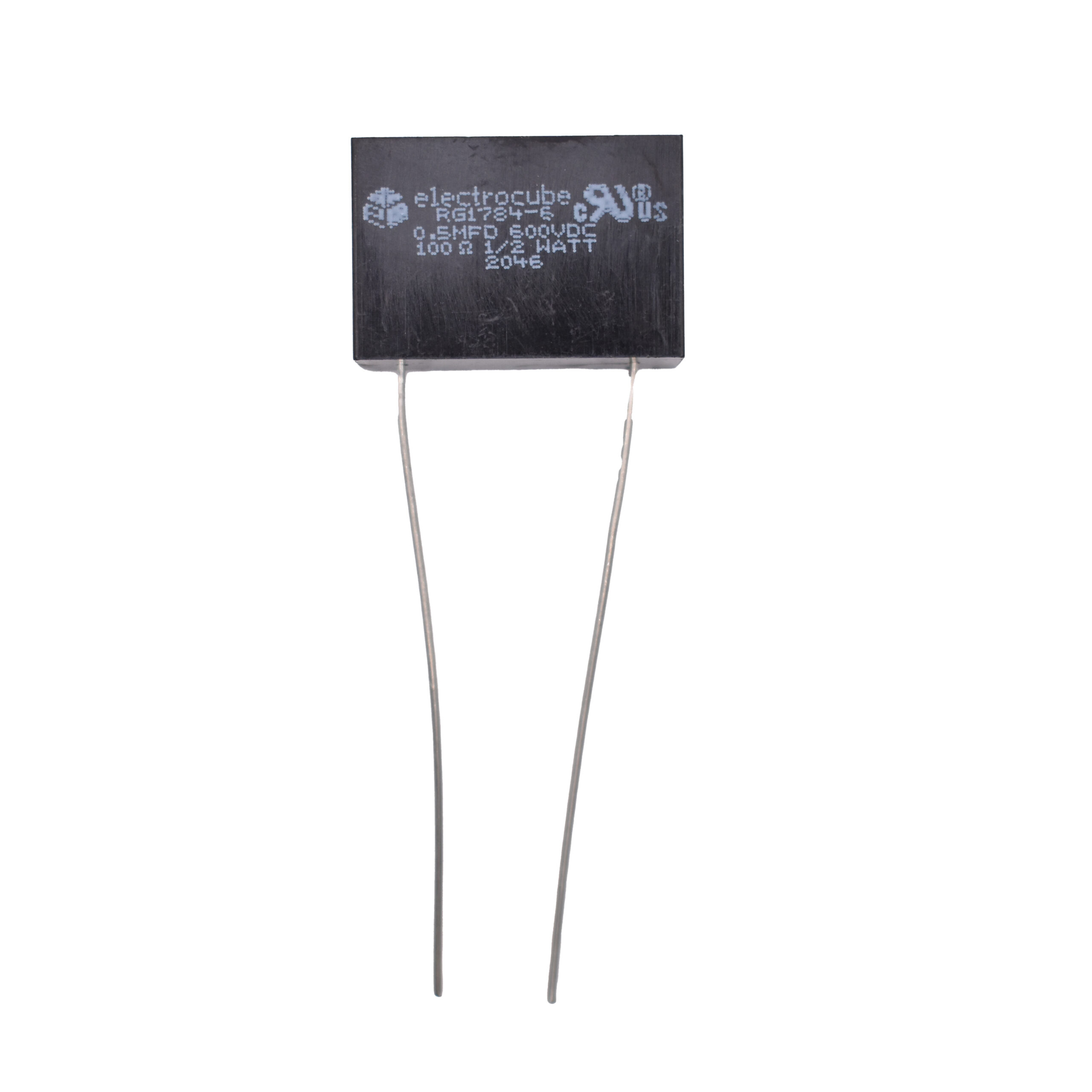

The Electrocube RG1784-6 is a single-phase RC network designed for surge suppression and EMI/RFI filtering applications. It features a capacitance of 0.5 microfarads (MFD) and a resistance of 100 ohms, with a power rating of 5 watts. The component is rated for 600 VDC operation. This radial-mount device is engineered for PC board installation, offering compact dimensions to facilitate side-by-side mounting in industrial environments.
Feature Summary
- Single-phase RC network configuration for effective surge suppression
- Compact physical design enabling dense side-by-side PCB mounting
- Radial lead construction for standard through-hole integration
Applications
- Surge suppression in industrial drive systems
- EMI/RFI filtering for single-phase circuits
- PC board mounted protection in demanding industrial environments
Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to confirm electrical parameters such as resistance and capacitance values. Confirm current availability status as some listings indicate discontinuation or limited stock. Ensure the component meets the required voltage and power ratings for the intended application before procurement.
Selection Notes
Select this component when a single-phase RC snubber is required for transient voltage suppression. Consider the 100-ohm resistance and 0.5-microfarad capacitance values for compatibility with the target circuit impedance. Verify that the 600 VDC rating exceeds the maximum operating voltage of the system to ensure reliable performance under stress conditions.
Part Context
The RG1784 series comprises rugged, precision-engineered RC networks from Electrocube. These components are built for reliability in harsh industrial settings. The RG1784-6 represents a specific variant within this family, distinguished by its unique resistance and capacitance combination tailored for specific filtering requirements.
Replacement Considerations
Check for direct substitutes within the RG1784 series, such as the RG1784-5, which shares similar form factors but differs in resistance value. Verify pinout compatibility and electrical specifications before substituting any alternative component.
