RG1784-8

Overview

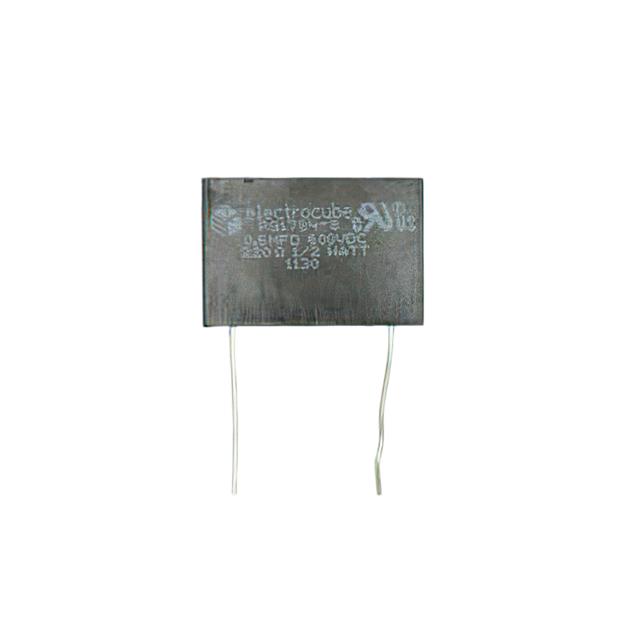

The Electrocube RG1784-8 is a single-phase RC EMI filter designed for PC board mounting. It functions as a first-order low-pass network to suppress electromagnetic interference. The component features a capacitance of 0.5 µF and a resistance of 220 Ohms. It is rated for a maximum voltage of 600 VDC with a power dissipation capacity of 1/2 Watt. The unit utilizes radial leads for through-hole installation.

Feature Summary

• Provides first-order low-pass filtering for single-phase applications
• Compact design facilitates side-by-side PC board mounting
• Radial lead configuration ensures secure through-hole integration

Applications

• Power supply input filtering
• Electronic equipment controls
• Medical device circuit protection
• Test equipment signal conditioning

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical tolerances and compliance status. Ensure the procurement source provides valid traceability for industrial automation components. Cross-reference datasheet specifications with actual inventory items to prevent substitution errors during acquisition.

Selection Notes

Select this component when a compact, single-phase RC network is required for low-pass filtering on printed circuit boards. The 220 Ohm resistor and 0.5 µF capacitor combination targets specific frequency attenuation needs. Verify that the 600 VDC rating aligns with the system's operational voltage requirements before implementation.

Part Context

This component belongs to the Electrocube RG1784 series of RC networks. These units are engineered for use in various industrial sectors including environmental controls and medical devices. The series offers standardized configurations for reliable EMI suppression in space-constrained electronic assemblies.

Replacement Considerations

Consult official distributor catalogs for direct substitutes within the RG1784 series. Verify equivalent capacitance and resistance values when evaluating alternative sources. Ensure any replacement maintains the same radial package style and voltage rating.
