RG1983-8-12

$26.73

Description：FILTER RC 220OHM/0.5UF TH
Series：-
Mfr：Electrocube
Package：Bulk

SKU:9c0278e75e7d Category: EMI/RFI Filters (LC, RC Networks) Brand: Electrocube

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER RC 220OHM/0.5UF TH
Series：-
Mfr：Electrocube
Package：Bulk
Type：Low Pass
Filter Order：1st
Technology：RC
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：-
Resistance - Channel (Ohms)：220
Values：R = 220Ohm, C = 0.5µF
ESD Protection：No
Operating Temperature：-40°C ~ 80°C
Applications：General Purpose
Voltage - Rated：200V
Mounting Type：Through Hole
Package / Case：Radial
Size / Dimension：1.000" L x 0.380" W (25.40mm x 9.65mm)
Height：0.660" (16.76mm)
Current：-
Grade：-
Qualification：-

Download product information

RG1983-8-12

Overview

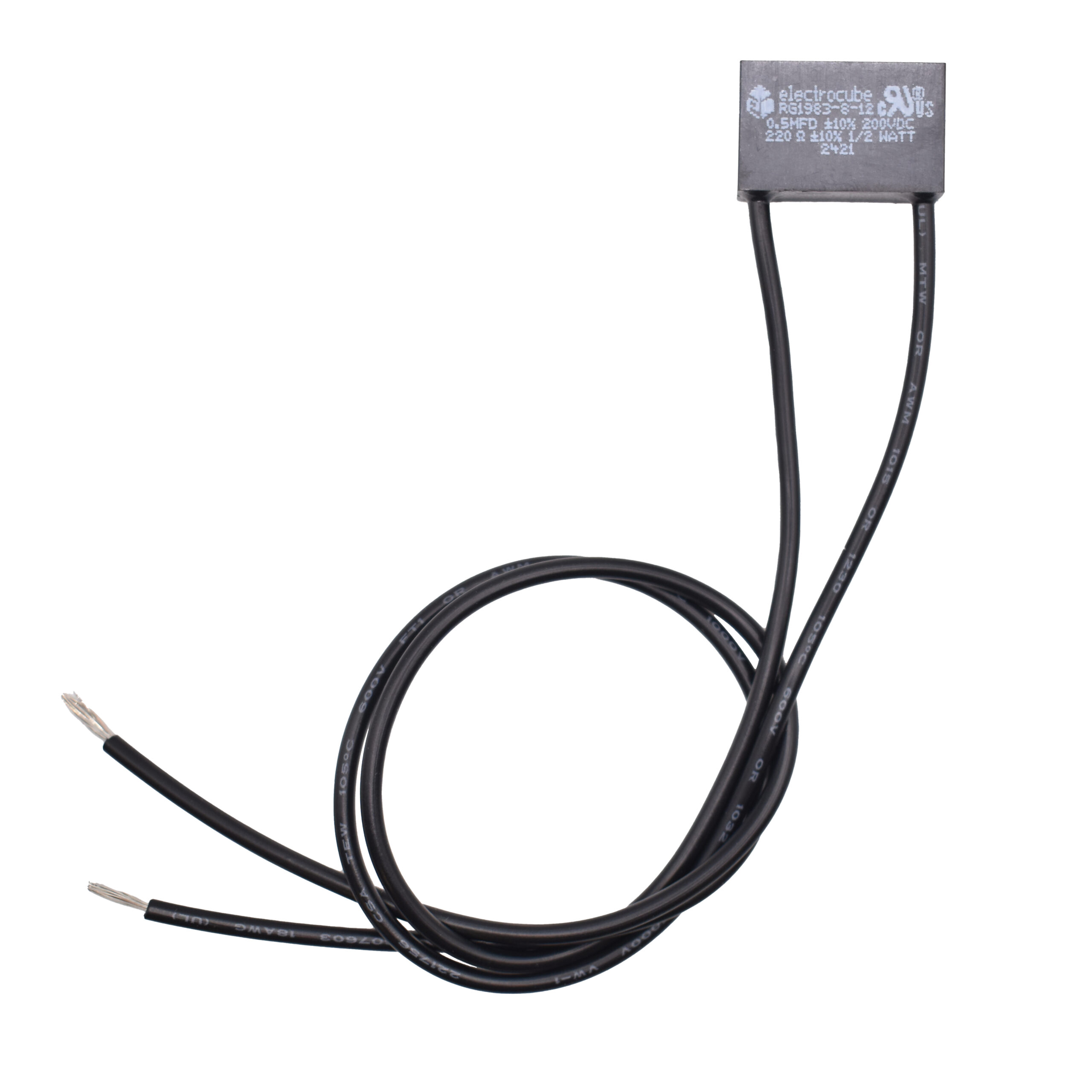

The Electrocube RG1983-8-12 is a single-phase RC network capacitor designed for circuit protection. It features a capacitance of 0.5 microfarads and a resistance of 220 ohms. The component is rated for 125 VAC and 200 VDC, with a power handling capacity of 0.5 watts. This configuration allows it to suppress contact arcing and filter electrical noise in industrial applications.

Feature Summary

Suppresses contact arcing to protect electronic equipment from malfunctions
Filters electrical noise within single-phase circuits
Compact design enables easy free-hanging mounting across coils and contacts

Applications

Protection of electronic equipment against costly failures
Suppression of contact arcing in industrial control systems
Filtering applications across coils and contactors

Procurement Notes

Verify the specific voltage ratings (125 VAC / 200 VDC) and capacitance value (0.5 MFD) match your circuit requirements. Confirm the resistance value is 220 ohms. Ensure the component type is a single-phase RC network suitable for your application's phase configuration. Check physical dimensions for mounting compatibility.

Selection Notes

Select this model when a single-phase RC network is required for arc suppression and noise filtering. The 0.5 MFD capacitance and 220-ohm resistance are specific to this part number. Consider the compact size for installations where space is limited or free-hanging mounting is preferred over panel installation.

Part Context

This component belongs to the Electrocube range of MTW leaded single-phase RC networks. These components are engineered to provide advanced protection for electronic equipment. The series is known for its ability to suppress contact arcing and filter signals effectively in various industrial environments.

Replacement Considerations

The RG1986-8-12 is a related single-phase RC network but has different voltage ratings (600 VDC/250 VAC). Verify that the lower voltage rating of the RG1983-8-12 is sufficient for your specific circuit before considering alternatives.
