RG1986-1-12

Overview

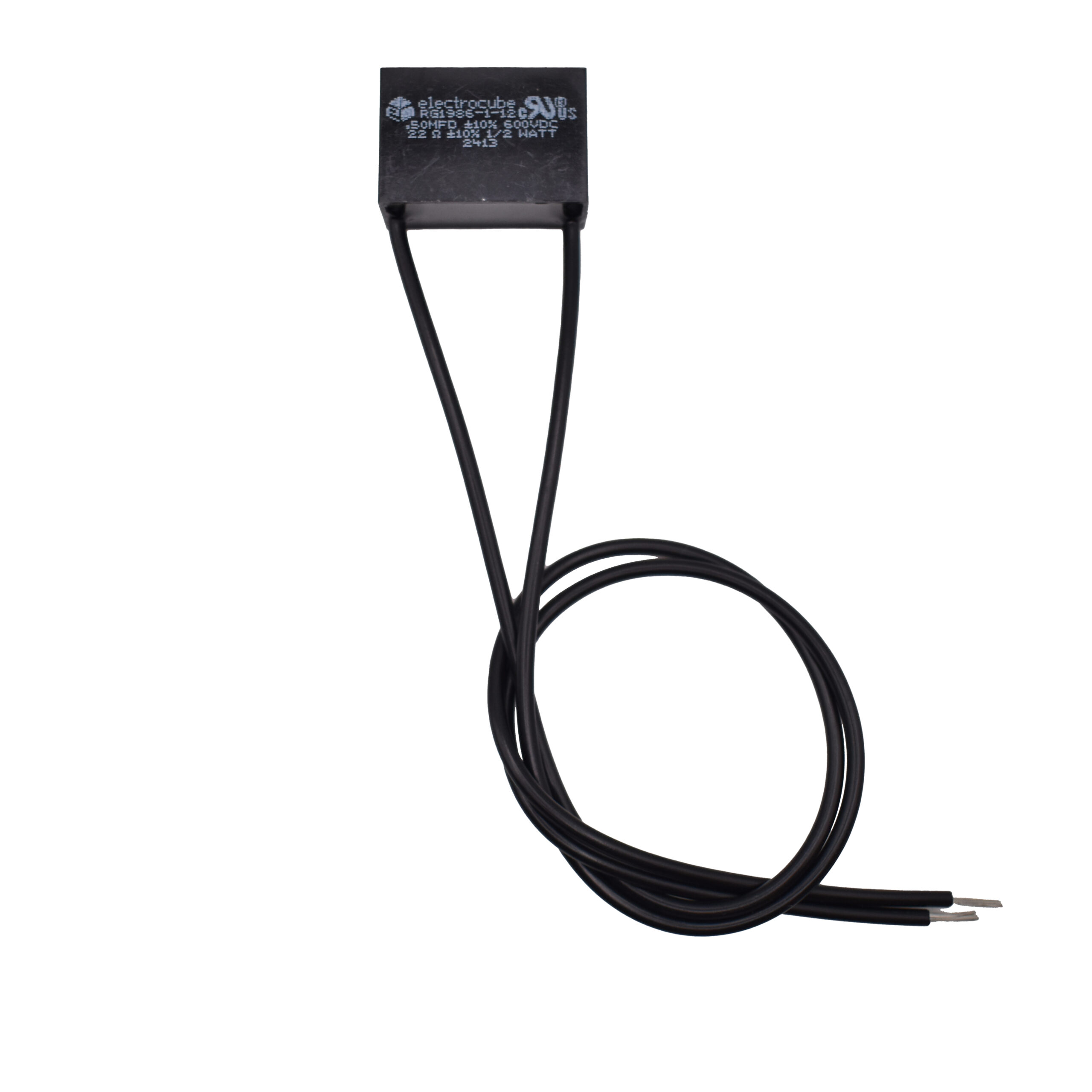

The Electrocube RG1986-1-12 is a single-channel, first-order RC EMI/RFI filter designed for low-pass noise suppression. It features a fixed resistance of 22 Ohms and a capacitance of 0.5 microfarads. The component utilizes radial leads for through-hole mounting, allowing for flexible installation across coils, contacts, and other sensitive circuitry.

Feature Summary

• Provides first-order low-pass filtering to attenuate high-frequency electromagnetic interference.
• Compact form factor enables easy free-hanging mounting in confined spaces.

Applications

• Noise suppression across electrical coils
• Filtering at contact points in switching circuits
• General EMI/RFI mitigation in single-phase applications

Procurement Notes

Verify the specific suffix -12 against official Electrocube documentation to confirm lead length and termination specifications. Ensure the 22 Ohm resistance and 0.5 µF capacitance values align with the target circuit requirements before procurement.

Selection Notes

Select this component when a simple, cost-effective first-order RC network is required for single-phase noise reduction. The radial lead configuration facilitates manual assembly and secure attachment to various components without requiring complex PCB footprints.

Part Context

This part belongs to the Electrocube RG1986 series of MTW-leaded single-phase RC networks. These filters are engineered for compact integration into systems requiring basic EMI suppression, offering a reliable alternative to more complex multi-stage filtering solutions.

Replacement Considerations

Consult official Electrocube substitution guides for verified equivalents. Generic RC networks may not match the specific lead configurations or voltage ratings required for direct replacement in existing assemblies.
