RG1986-8-6

Overview

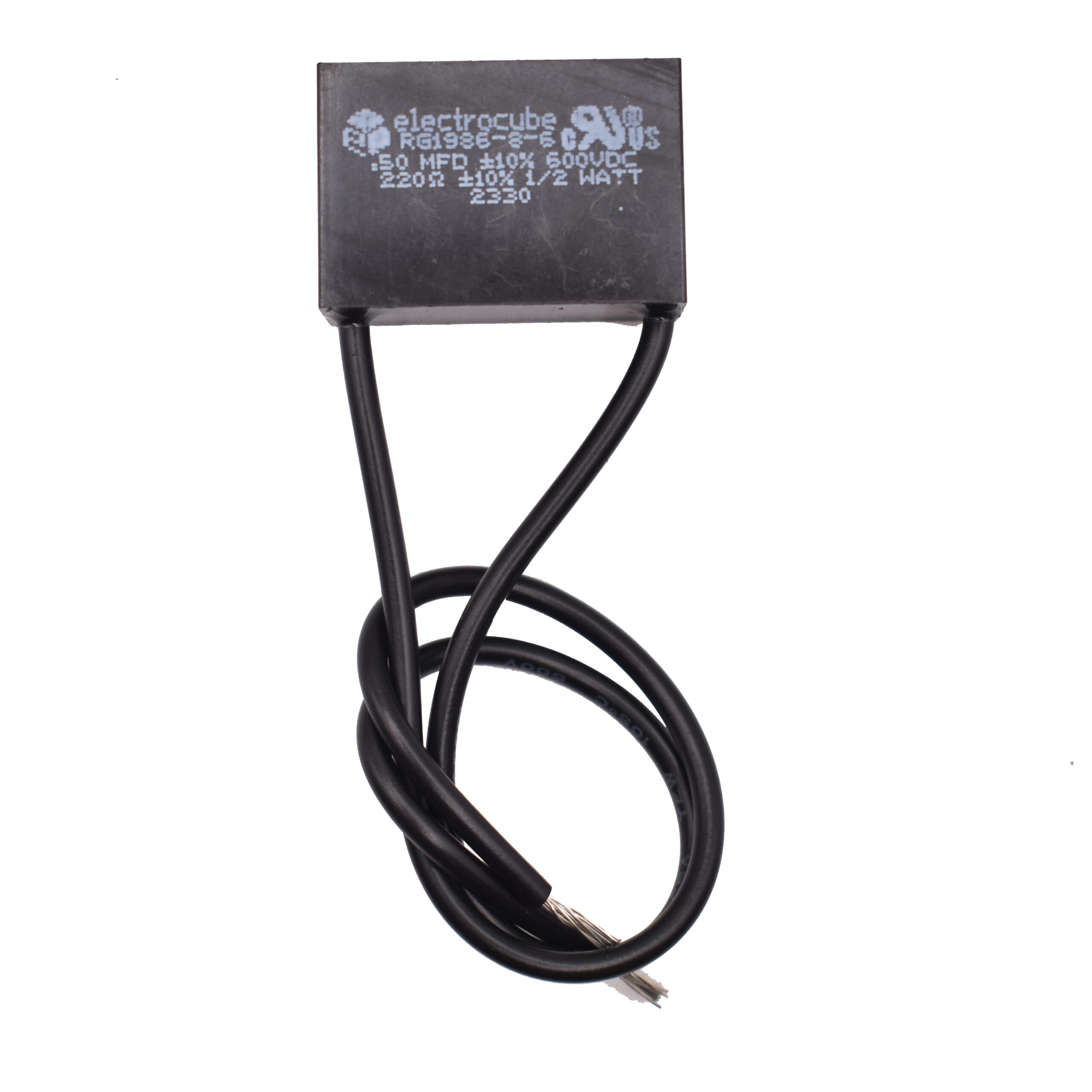

The Electrocube RG1986-8-6 is a single-phase RC network designed for arc suppression. It features a capacitance of 0.5 microfarad and an equivalent series resistance of 220 ohms. The component operates at a maximum voltage of 600 volts DC with a power rating of 1/2 watt. It has a tolerance of 10 percent and utilizes stranded wire leads. The physical shape is round, allowing for compact mounting in industrial applications.

Feature Summary

• Arc suppression capability for electrical circuits
• Single-phase configuration for low-frequency filtering
• Compact round design for free-hanging installation

Applications

• Industrial automation systems
• PLC EtherCAT coupler modules
• EMI suppression in power supplies

Procurement Notes

Verify the specific part number suffix to ensure compatibility with existing circuit requirements. Confirm that the 600 VDC rating meets the operational voltage limits of the target application. Check lead type and length specifications against mechanical constraints. Ensure the 0.5 MFD capacitance value aligns with the intended arc suppression or filtering needs. Validate the 220 ohm resistance value for proper damping characteristics.

Selection Notes

Select this component for applications requiring low-frequency EMI suppression or arc suppression in single-phase circuits. The 600 VDC rating suits moderate voltage industrial environments. Consider the 0.5 MFD capacitance and 220 ohm resistance combination for effective noise reduction. The compact round form factor facilitates easy mounting on coils or contacts. Ensure the 1/2 watt power rating is sufficient for the expected current loads.

Part Context

This component belongs to the Electrocube RG1986 series of resistor-capacitor networks. These units are specifically engineered for arc suppression and EMI filtering in industrial control systems. The series offers various capacitance and resistance values to suit different circuit requirements. The RG1986-8-6 represents a standard configuration within this product line.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
