RG2030-1-6

Overview

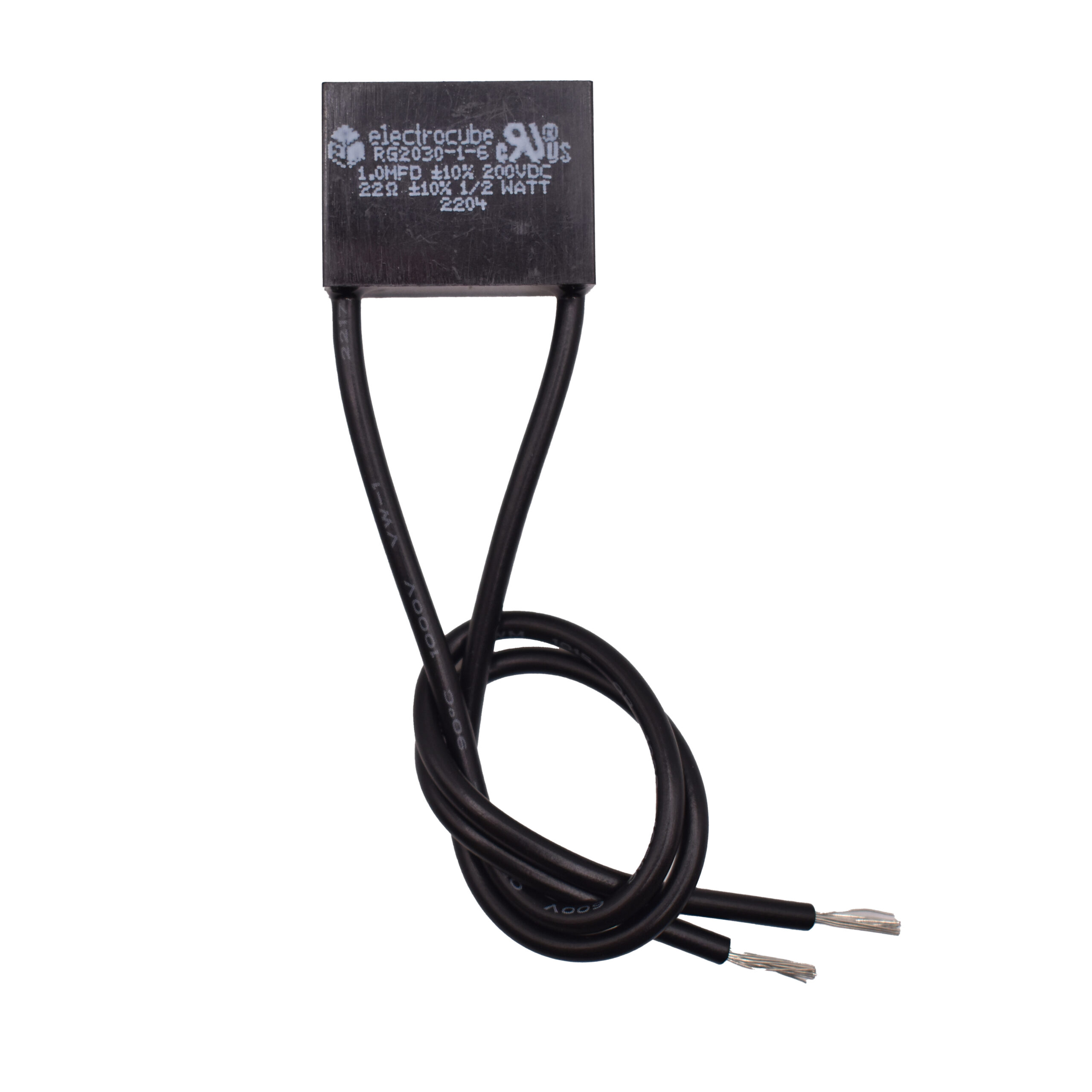

The Electrocube RG2030-1-6 is a single-phase RC network designed for general-purpose applications. It features a rated voltage of 200V and utilizes through-hole mounting in a radial package. The component dimensions are 1.000 inches in length by 0.500 inches in width.

Feature Summary

• Compact physical design enabling easy free-hanging installation across coils and contacts.

Applications

• General purpose electronic circuits

Procurement Notes

Verify the specific manufacturer part number against official Electrocube documentation to ensure authenticity. Confirm that the received unit matches the RG2030-1-6 designation and associated electrical ratings before integration into designs.

Selection Notes

Select this component when a compact, single-phase RC network with a 200V rating is required. Ensure the application supports through-hole radial mounting and aligns with the specified physical dimensions for proper enclosure or board fitment.

Part Context

This component belongs to the Electrocube RG2030 series of MTW leaded single-phase RC networks. These networks are engineered for robust performance in standard industrial and commercial electronic environments requiring reliable suppression or timing functions.

Replacement Considerations

Consult official Electrocube substitution guides for verified equivalents. Generic cross-references may not match the specific electrical tolerances or physical form factor required for critical installations.
