RG2030-1

Overview

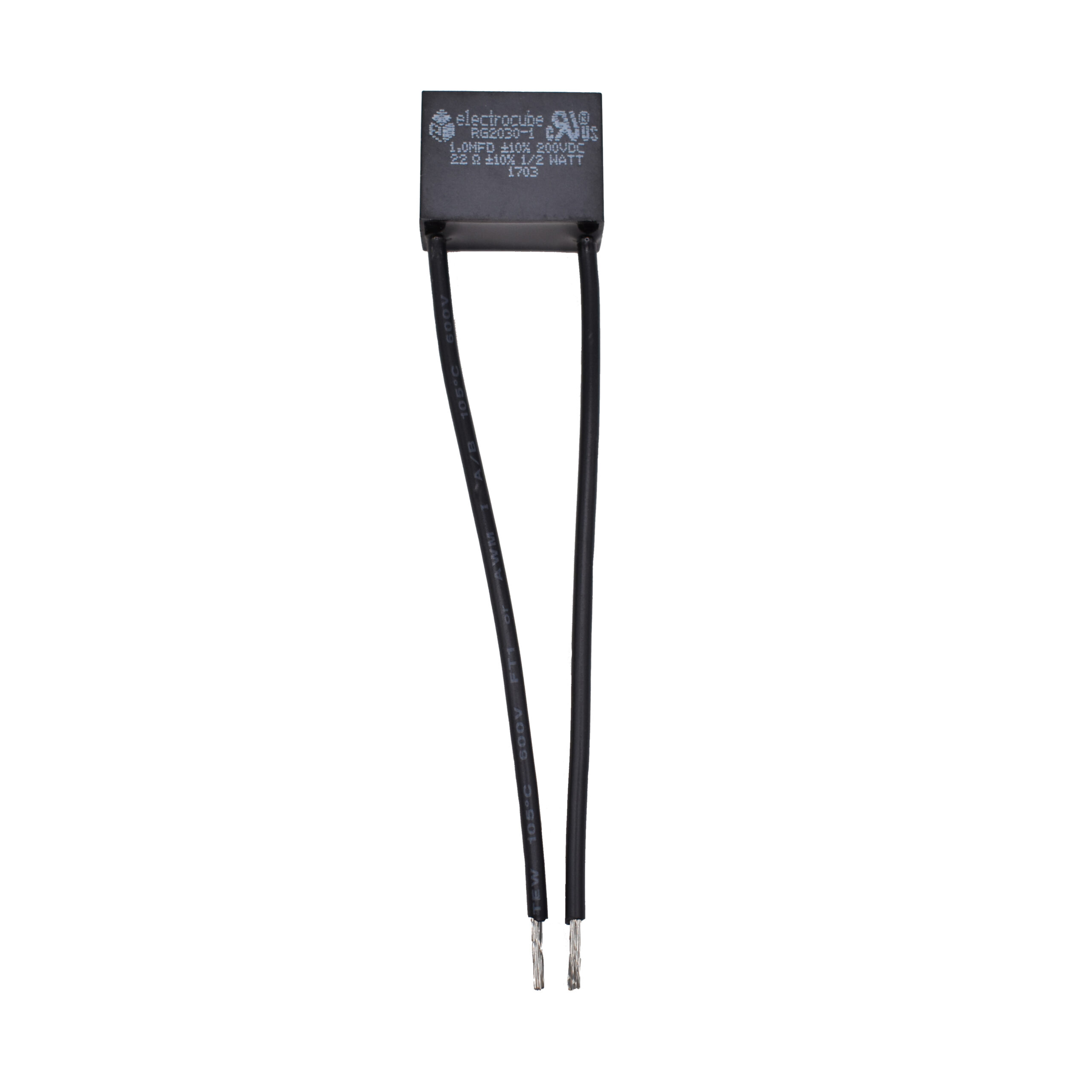

The Electrocube RG2030-1 is a single-phase RC network designed for EMI/RFI suppression. It features a radial through-hole package with dimensions of 1.000" L x 0.500" W. The component is rated for 200V DC and includes an integrated capacitor and resistor to filter electrical noise in general-purpose applications.

Feature Summary

• Single-phase RC network configuration for effective noise suppression
• Compact radial leaded design suitable for free-hanging mounting
• Integrated components simplify installation across coils and contacts

Applications

• General purpose EMI/RFI filtering
• Suppression across electrical coils
• Filtering across contact points

Procurement Notes

Verify the specific suffix (e.g., -6, -7, -12) when ordering, as these indicate distinct resistance and capacitance values within the RG2030 series. Confirm voltage ratings and physical dimensions match the target circuit requirements before integration. Ensure compatibility with through-hole mounting processes.

Selection Notes

Select this component for applications requiring compact, single-phase noise reduction. Evaluate the specific resistance and capacitance needs defined by the variant suffix. Consider the radial package size for spatial constraints in assembly. Verify that the 200V DC rating aligns with the system's operational voltage limits.

Part Context

This part belongs to the Electrocube RG2030 series of MTW leaded single-phase RC networks. These components are engineered for easy installation in various electronic assemblies where electromagnetic interference mitigation is required without occupying significant board space.

Replacement Considerations

Substitutes must match the single-phase RC topology, 200V DC rating, and radial form factor. Specific resistance and capacitance values vary by suffix; ensure the replacement matches the exact electrical parameters of the original RG2030-1 variant.
