RG2030-5

Overview

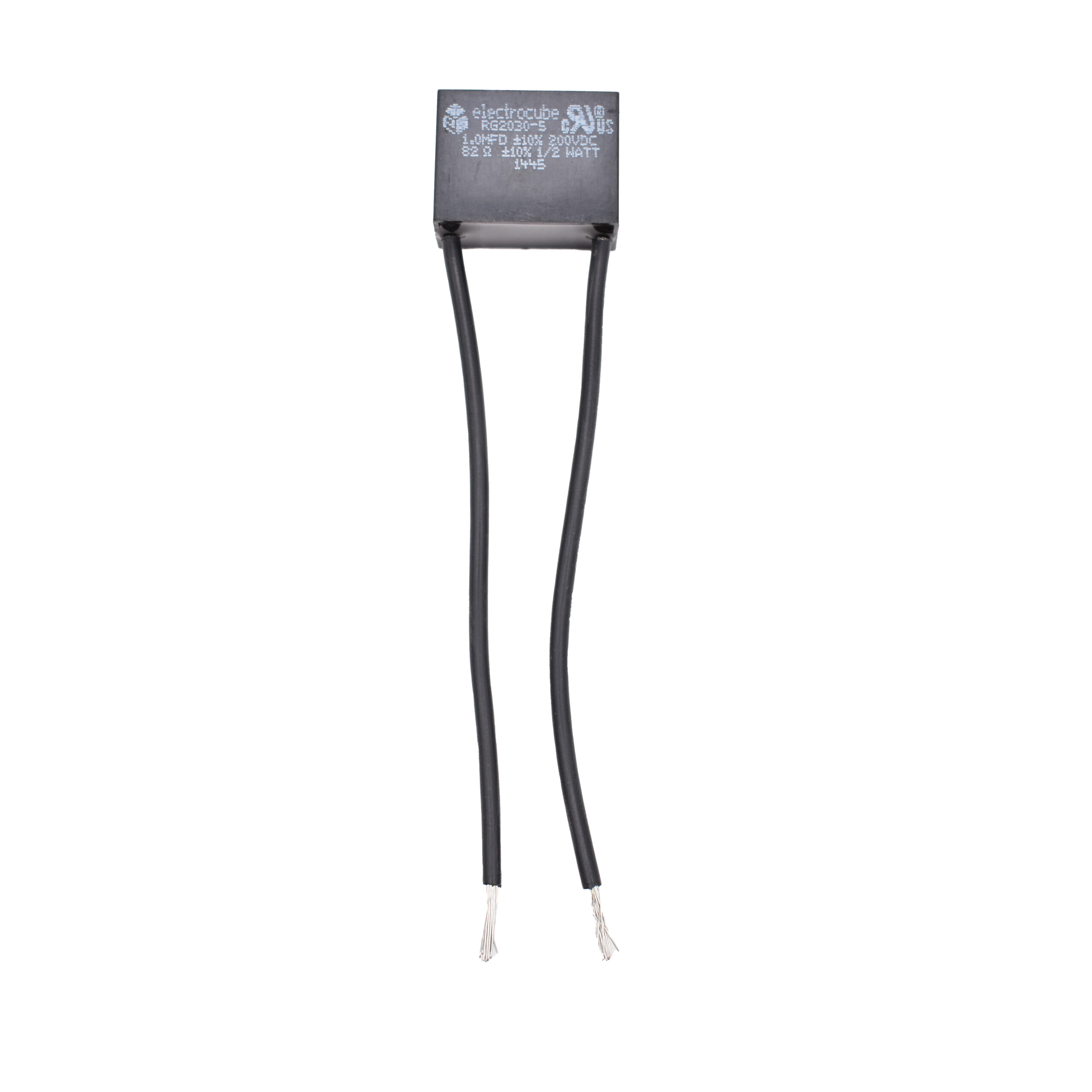

The Electrocube RG2030-5 is a radial through-hole RC network designed for arc suppression and EMI/RFI filtering. It features a capacitance of 1.0 µF with ±10% tolerance, a resistance of 100 Ohms, and a rated voltage of 300V. The component operates within a temperature range of -40°C to 80°C and is constructed with series-connected capacitors and resistors.

Feature Summary

• Series-connected resistor-capacitor architecture for effective noise suppression
• Radial through-hole mounting configuration for standard PCB integration
• UL and ULC approved construction ensuring safety compliance

Applications

• Arc suppression in industrial switching circuits
• EMI/RFI filtering for general-purpose electronic equipment
• Motor control circuit protection

Procurement Notes

Verify the specific suffix codes against official Electrocube documentation to confirm exact electrical tolerances and physical dimensions. Ensure the procurement source provides valid UL/ULC certification records. Cross-reference the manufacturer part number with distributor catalogs to avoid confusion with similar RG2030 series variants that may differ in resistance or voltage ratings.

Selection Notes

Select this component when a fixed 1.0 µF capacitance and 100 Ohm resistance are required for transient suppression. Confirm that the 300V rating meets the circuit's peak voltage requirements. Verify that the radial package fits the available board space and that the operating temperature range covers the intended environmental conditions.

Part Context

This part belongs to the Electrocube RG2030 series of resistor-capacitor networks. These components are widely used in industrial applications for suppressing voltage spikes and reducing electromagnetic interference. The series offers various combinations of resistance and capacitance values tailored for different arc suppression needs.

Replacement Considerations

Check for direct substitutes from Electrocube such as RG2030-6 if higher resistance is needed. Verify compatibility with other manufacturers' RC networks offering identical 1.0 µF capacitance, 100 Ohm resistance, and 300V rating in a radial package.
