Product Detailed Parameters
- Description：FILTER RC 100 OHMS/1UF TH
- Series：-
- Mfr：Electrocube
- Package：Bulk
- Type：Low Pass
- Filter Order：1st
- Technology：RC
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 1µF
- ESD Protection：No
- Operating Temperature：-40°C ~ 80°C
- Applications：General Purpose
- Voltage - Rated：200V
- Mounting Type：Through Hole
- Package / Case：Radial
- Size / Dimension：1.000" L x 0.500" W (25.40mm x 12.70mm)
- Height：0.780" (19.81mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

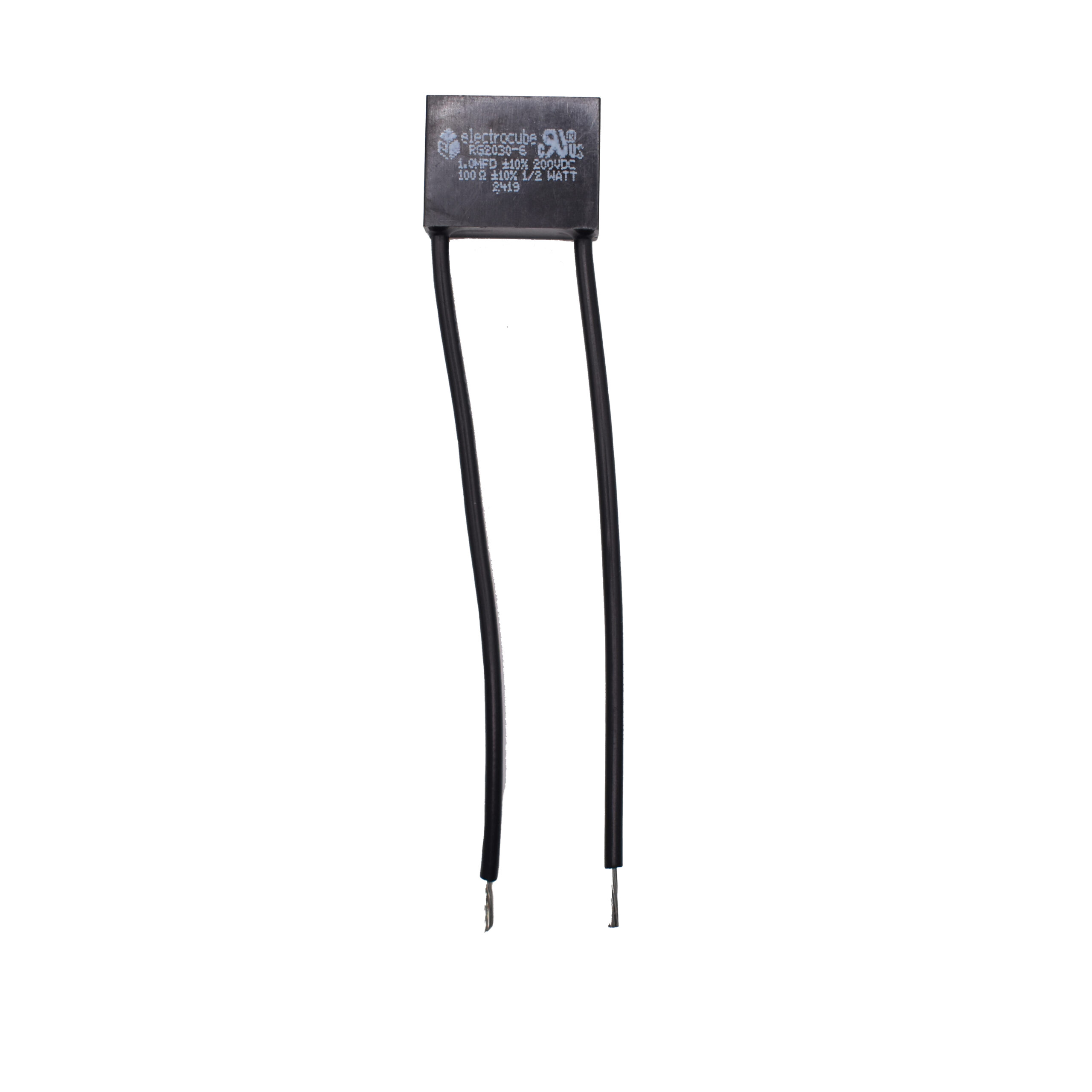

The Electrocube RG2030-6 is a single-phase RC network designed for general-purpose applications. It features a radial through-hole mounting type with dimensions of 1.000 inches in length and 0.500 inches in width. The component is rated for 200V DC voltage. Specific electrical parameters such as capacitance, resistance, and power rating are not explicitly defined in the provided source text for this exact suffix, though related models indicate typical values like 100 ohms or 1 MFD.
Feature Summary
- Compact size allows for easy free-hanging mounting across coils and contacts
- Designed for single-phase RC network applications
- Utilizes MTW leaded construction
Applications
- General purpose filtering
- Mounting across coils
- Mounting across contacts
Procurement Notes
Verify the specific suffix configuration against the required electrical specifications, as variations exist within the RG2030 series. Confirm lead length and wire gauge requirements, noting that similar models may feature 6-inch leads with 18AWG wire. Ensure the voltage rating meets the circuit's DC and AC requirements before procurement.
Selection Notes
Select this component when a compact, single-phase RC network is needed for coil or contact suppression. Consider the radial package and through-hole mounting style for compatibility with existing board layouts. Verify temperature range suitability, as related models operate between -40°C and +80°C.
Part Context
This part belongs to the Electrocube RG2030 series of MTW leaded single-phase RC networks. These components are engineered for durability and ease of installation in industrial environments. The series offers various resistance and capacitance combinations to suit different suppression needs.
Replacement Considerations
Check for direct substitutes within the RG2030 series with matching suffixes. Models like RG2030-1-6 or RG2030-3-6 may serve as alternatives if their electrical ratings align with the application requirements.
FAQ
What is the mounting type for the RG2030-6?
It uses a radial through-hole mounting type.
What is the rated voltage for this component?
The component is rated for 200V DC.
